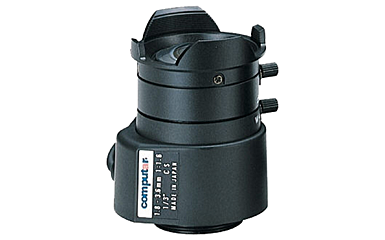

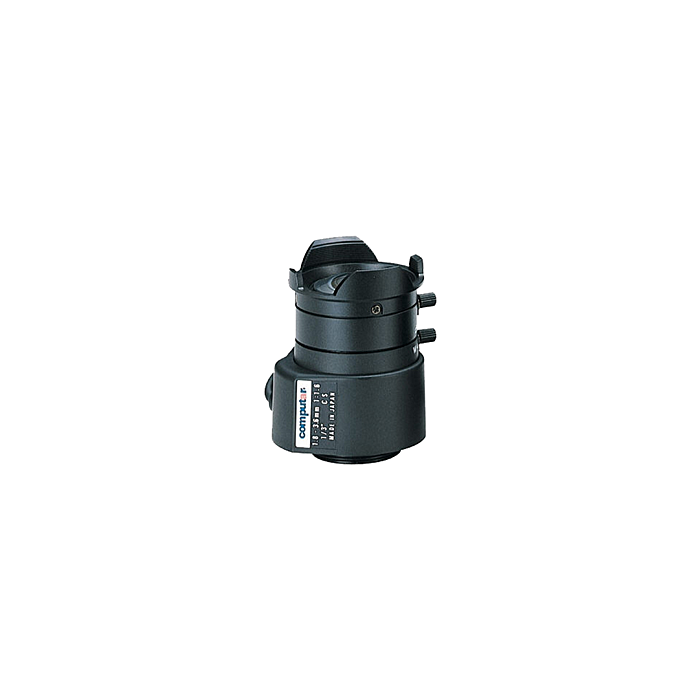

TG2Z1816FCS: CBC-Computar 1/3" 1.8-3.6mm f1.6 A/I (CS-Mount)
1/3" 1.8-3.6mm f1.6 Varifocal, DC Auto Iris (CS Mount)
SKU
TG2Z1816FCS
Computar varifocal DC auto iris lenses offer maximum flexibility in camera installations requiring a wide range of focal lengths. Focal length adjustments can be made with a turn of the dial, virtually eliminating the cost and inventory problems associated with improper monofocal lens selection. All lenses are CS-Mount, comprised of all glass optics, come with locking setscrews and a durable metal barrel and mount, and are covered by a three year warranty.
| Focal Length | 1.8 - 3.6mm |
| Max. Aperture Ratio | 1:1.6 |
| Max. Image Format | 4.8 x 3.6 mm (ø6 mm) |
| Operation Range | Iris: F1.6 to F360C Focus: 0.2m to infinity Zoom: 1.8mm - 3.6mm |
| Control | Iris: DC Auto Iris Focus/Zoom: Manual |
| Object Dimension at M.O.D. | 1.8mm: 123.8cm x 56.5cm 3.6mm: 33.2cm x 22.9cm |
| Angle Of View | 1/3 type - 173.8 - 99.0° (D), 144.2 - 79.4° (H), 109.4 - 59.6° (V) 1/4 type - 135.8 - 74.4° (D), 109.5 - 59.6° (H), 82.3 - 44.7° (V) |
| Operating Temperature | -20 to 50°C |
| Effective Lens Aperture | Front: ø22.0 mm Rear: ø7.9 mm |
| Back Focal Length | Tele: 10.5 mm Wide: 7.0 mm |
| Flange Back Length | 12.5 mm |
| Mount | CS-Mount |
| Filter Size | - |
| Dimensions (W x H x D) | ø37.4mm x 42.6mm |
| Weight | 78g |
