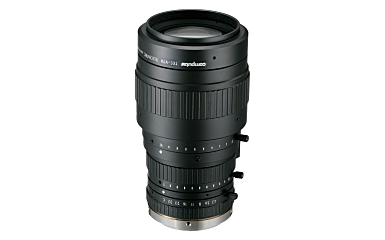

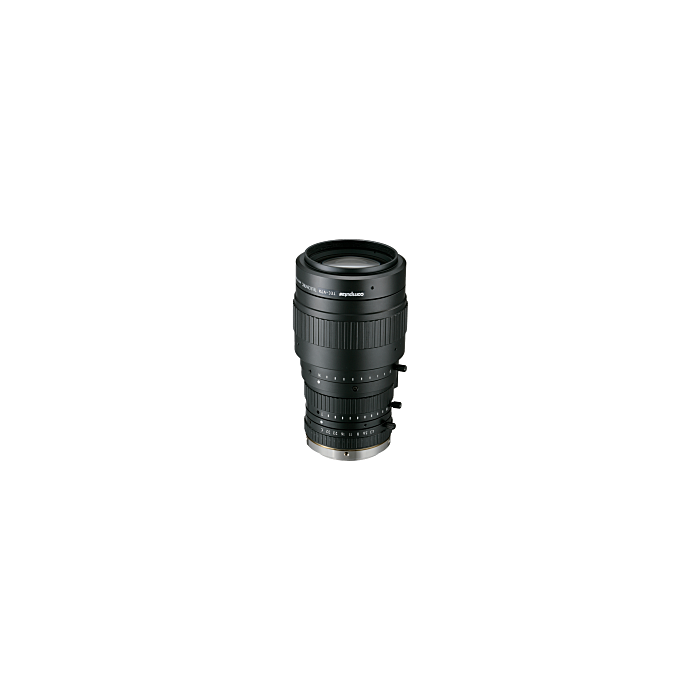

  • Computar TEC-V7X Image # 1

CBC-Computar TEC-V7X 5 Megapixel 7X Macro Zoom Telecentric Lens (C-Mount)

Quick Overview

5 Megapixel 7X Macro Zoom Telecentric Lens
Overview

This high performance lens incorporates 2 design functions. It operates both as a 7X macro zoom lens with 0.07X to 0.5X magnification and as a telecentric lens within the 0.25X to 0.5X magnification range.  It provides excellent brightness throughout the zoom range, maintaining 70% illumination at both center and corners.

The TEC-V7X’s unique features provide the versatility to meet a wide range of industrial applications.  The working distance is adjustable from 182-577mm and a F4.3-32C manual iris allows precise depth of field and contrast adjustments.  This lens is suitable for cameras up to 5 megapixels with 1/1.1” sensors.

Features:

  • Zoom Ratio 7:1
  • Sensor: 1.1" (diagonal 17.4mm)
  • F stop: F4.3
  • Resolution: 100 lp/mm at center and corner
  • Relative Illumination rate: more than 70%
  • Optical Distortion: Maximum 1.7%
  • Specifications
    Optical Magnification 0.07X - 0.5X
    Max. Magnification 47.65 - 106.26mm
    Max. Aperture Ratio 1 : 4.3
    Operation Range Iris: F4.3-F32
    Focus: 182 mm - 577.2 mm
    Control Iris: Manual
    Focus: Manual
    Zoom: Manual
    Operating Temperature -10°C - 50°C
    Optical Distortion Tele:
    Wide:
    Back Focal Length Tele:
    Wide:
    Mount C-Mount
    Filter Size M62xP0.75
    Dimensions 61 x 152.86mm
    Weight 1.4kg
