Computar TEC-M03110MPC Image # 1

TEC-M03110MPC (TECM03110MPC):CBC-Computar 2MP, 2/3" 111mm, Telecentric Lens, 0.3x magnification (C-Mount)

Computar M1218FIC-MP Image # 1

M1218FIC-MP (M1218FICMP): CBC-Computar 5 Megapixel 2/3" 12mm, F1.8, Manual Iris Lens, (C-Mount)

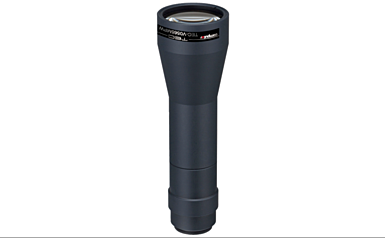

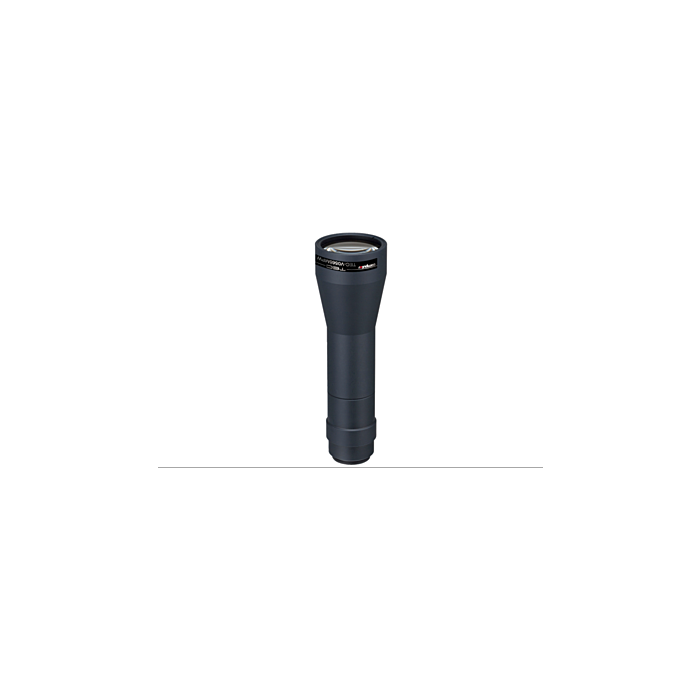

TEC-V0565MPW (TECV0565MPW) 5MP: CBC-Computar, 1" 65.2mm, Telecentric Lens, 0.5x magnification (C-Mount)

1 inch type Cameras, 5 Megapixel Telecentric Lens, Magnification 0.5X, WD65mm.
SKU
Computar TEC-V0565MPW

Features:

  • Compatible with 5MP sensors on 1 " cameras
  • Designed for 65.2mm working distance
  • 0.5x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.02s%)
  • Magnification 0.3X
    Working Distance 111mm
    Effective F Number 6.5
    Max. Image Format φ11mm
    Control Iris: -
    Focus: -
    Field of View 29.3mm(H) x 22mm(V) 2/3"
    Resolving Power *1 14.5µm
    Depth of Field *2 5.75mm
    NA 0.023
    TV Distortion 2/3 type: -0.026%
    Back Focal Length 17.0mm
    Flange Back Length 17.526mm
    Mount C-Mount
    Filter Size -
    Dimensions φ55mm x 140.3mm
    Weight TBA
    Operating Temperature -10℃ - +50℃
