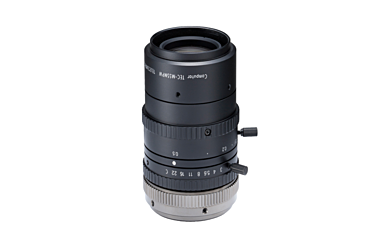

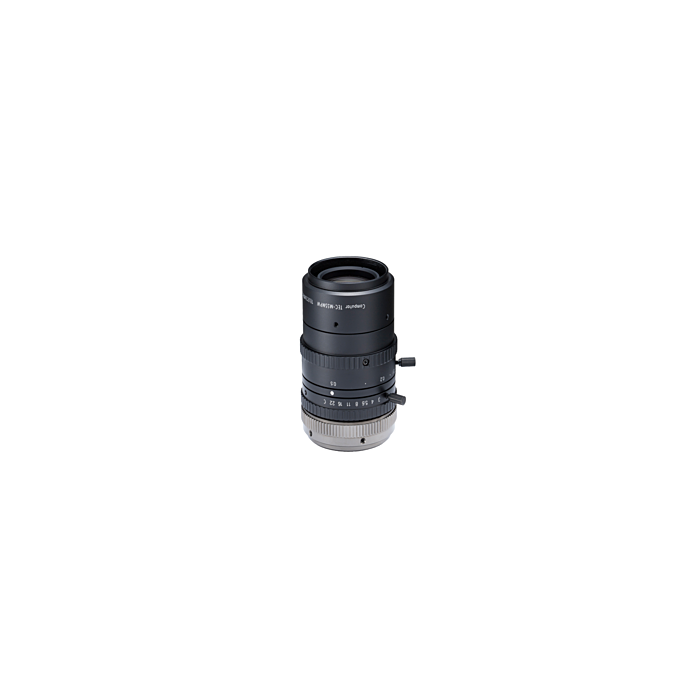

CBC-Computar TEC-M55MPW (TECM55MPW) 5MP, 2/3" 55mm Telecentric Lens (C-Mount)

2/3 type Cameras, 5 Megapixel, f=55mm, F3.0.
SKU
Computar TEC-M55MPW

Features:

  • Compact body design, compatible 5MP sensors
  • Optical magnification 0.057x - 0.5x
  • Relative illuminance more than 80%
  • Low distortion - less than 1%
Max. Magnification 0.057X - 0.5X
Max. Image Format 8.8mm x 6.6mm
Operation Range Iris: F3.0 - F22C
Focus: 0.14m - 1m
Control Iris: Manual
Focus: Manual
Object Dimension at M.O.D. 17.4mm(H) x 13.1mm(V) 2/3
Relative Illumination 94%(at 0.057X)
81%(at 0.5X)
Operating Temperature -10°C - +50°C
Effective lens aperture Front: 30.8mm
Rear: 10.7mm
Back Focal Length 17.0mm
Flange Back Length 17.526mm
Mount C-Mount
Filter Size M46.0 P=0.75mm
Dimensions 59mm x 93.1mm
Weight 400g
