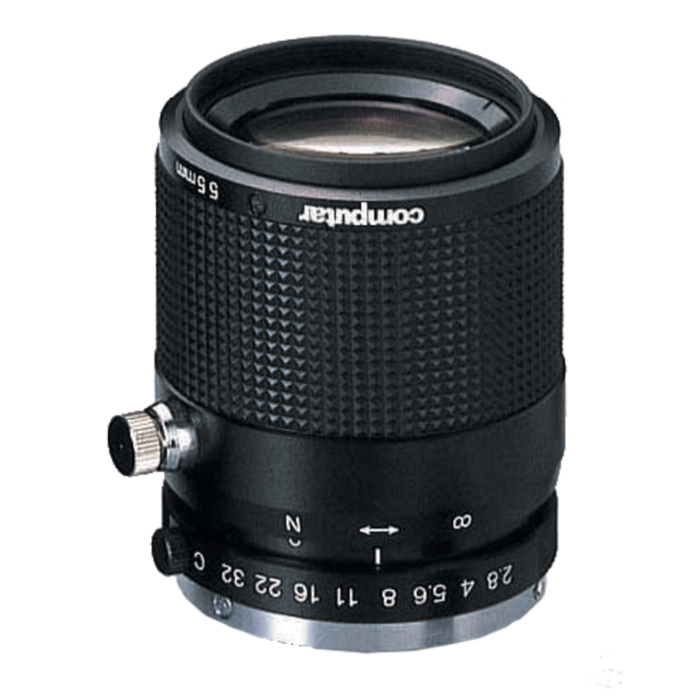

TEC-55 (TEC55): CBC-Computar Telecentric Macro Lens (C-Mount)
2/3" 55mm Telecentric Lens (C Mount)
For pricing and technical support:
SKU
Computar TEC-55
TEC55 Features:
Very low distortion compared to standard macro lenses
- Wide depth of field
- Working distance: 140mm - Infinity
- Suitable for use as a telephoto lens and macro lens
- Fast F2.8 F-stop at Infinity
| Lens Features | |
| Model No. | TEC-M55 |
| Focal Length | 55mm -- Effective Lens Aperture Front: 33.0mm(diameter) Rear: 13.3mm(diameter) |
| Max. Aperture Ratio | 1:2.8 -- Back Focal Length: 29.8mm |
| Max. Image Format HxVxD | 8.8 x 6.6 x 11mm -- Flange Back Length: 17.526mm |
| Operation Range | Iris: F.28 - 32C Focus: 0.14 - Infinity Filter Size: M43x0.75mm |
| Control | Iris: Manual Focus: Manual Dimensions: 53.0xD92.9mm Weight: 320g |
| Object Dimension at M.O.D. | 17 x 13mm |
| Angle Of View | 2/3" D: 11.5 H: 9.2 V: 6.9 |
| Operating Temperature | -20C - +50C |
