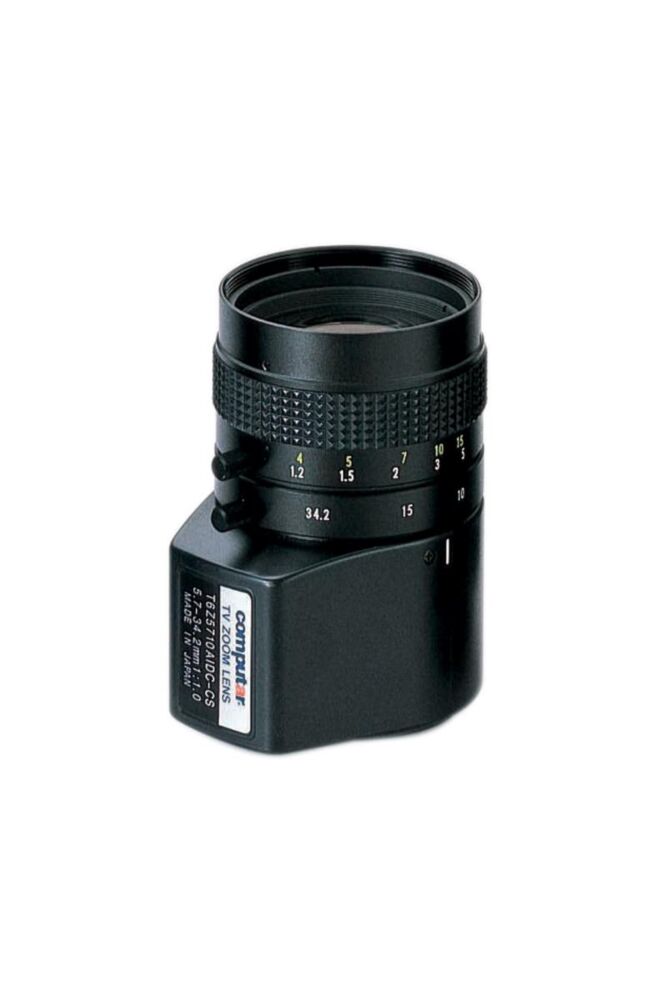

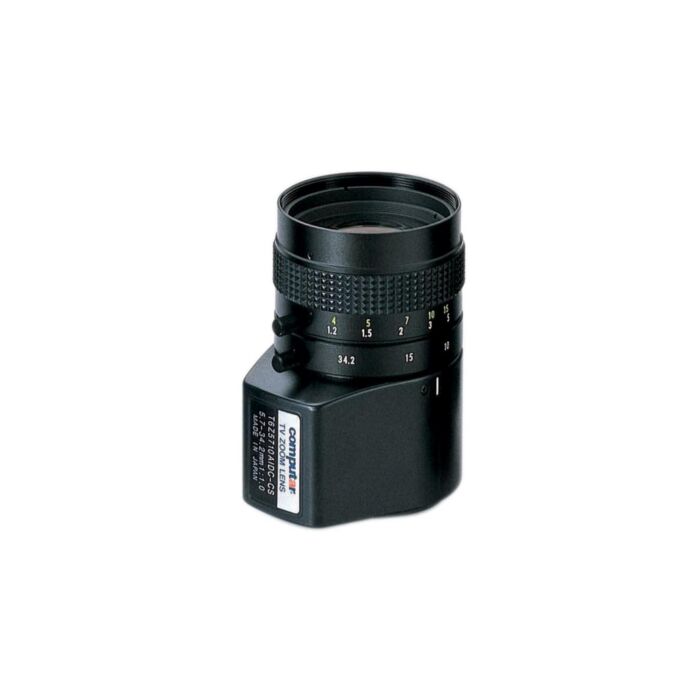

Computar T6Z5710AIDC-CS 1/3" Type, 5.7-34.2mm, f1.0, 6X Manual Zoom Lens (CS-Mount)

1/3" Type, 5.7-34.2mm, f1.0, 6X Manual Zoom, DC Auto Iris w/4-pin mini connector, CS Mount
SKU
T6Z5710AIDC-CS

Computar Manual Zoom Lenses provide manual adjustment of focal length, iris and focus. For use where a variable angle of view is required.  Main applications for this lens include inspection, machine vision and robotics.

Features:

  • Supports 1/3" sensors
  • CS mount for easy installation
  • 5.7-34.2mm focal length provides versatile zoom capabilities
  • 56.5 to 10° diagonal field of view captures a wide range of visual information
  • f/1.0 maximum aperture delivers high-quality images in low-light environments
  • Manual focus and zoom allow for precise adjustments
  • DC auto iris capable
  • M49 filter thread





Focal Length 5.7mm - 34.2mm
Max. Image Format 1:1.0
Max. Image Format 4.8mm x 3.6mm (6mm)
Operation Range Iris: F1.0 - F360C
Focus: 1.2m - Inf.
Zoom: 5.7mm - 34.2mm
Control Iris: DC Auto Iris
Focus: Manual
Zoom: Manual
Object Dimension at M.O.D. 5.7mm: 101.6cm x 75.2cm
34.2mm: 17cm x 13cm
Angle of View 1/3 type: 56.5° - 10.0° (D) x 45.9° - 8.1° (H) x 34.8° - 6.2° (V)
1/4 type: 43.2° - 7.8° (D) x 34.8° - 6.2° (H) x 26.2° - 4.8° (V)
Coil Drive: 190 ohms
Control: 1000 ohms
Effective Lens Aperture Front: φ41.0mm
Rear:  φ10.2mm
Back Focal Length 8.5mm
Flange Back Length  12.5mm
Mount  CS-Mount
Filter Size  M49 P=0.75mm
Tripod Screw -
Dimensions (W) 53mm x (H) 64mm x (D) 82.5mm
Weight 295 g
