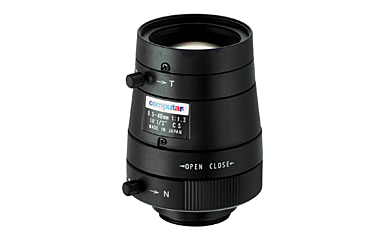

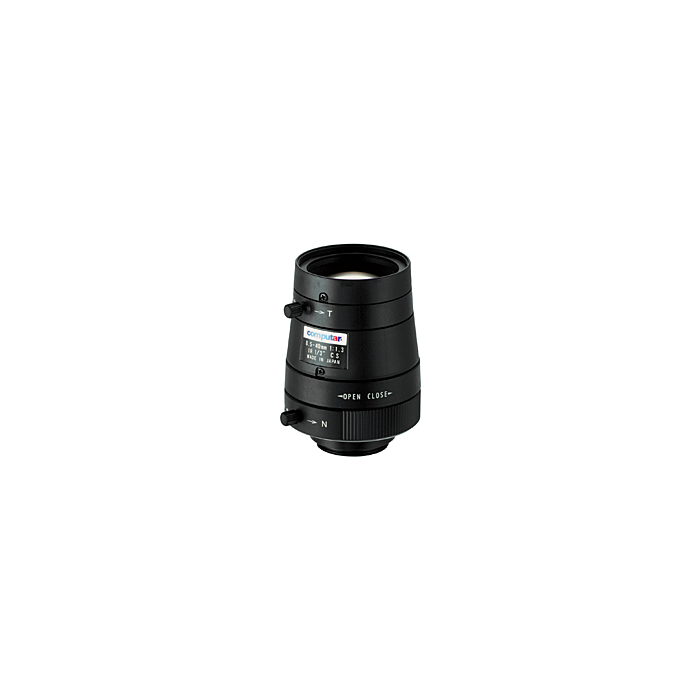

T5Z8513CS-IR (T5Z8513CSIR):CBC-Computar 1/3" 8.5-40mm f1.3 w/iris & focus, Day/Night IR (CS-Mount)
1/3" 8.5-40mm f1.3 Varifocal, Manual Iris (CS Mount) Day/Night IR
SKU
Computar T5Z8513CS-IR
Computar Varifocal IR (infrared) manual iris lenses are designed for use with Day/Night cameras. They eliminate focus shift in night mode, especially in the presence of IR lighting. All lenses are CS-Mount, comprised of all glass optics, come with locking set screws and a durable metal barrel and mount, and are covered by a three year warranty.
| Focal Length | 8.5 - 40mm |
| Max. Aperture Ratio | 1:1.3 |
| Max. Image Format | 4.8 x 3.6 mm (ø6 mm) |
| Operation Range | Iris: F1.3 to F16C Focus: 0.8m to infinity Zoom: 8.5mm - 40mm |
| Control | Iris: Manual Focus/Zoom: Manual |
| Object Dimension at M.O.D. | 8.5mm: 48.1cm x 34.5cm 40mm: 10cm x 7.5cm |
| Angle Of View | 1/3 type - 43.9 - 8.9°(D), 33.5 - 7.1° (H), 24.4 - 5.3° (V) |
| Operating Temperature | -20 to 50°C |
| Effective Lens Aperture | Front: ø27.0 mm Rear: ø9.3 mm |
| Back Focal Length | Tele: 10.6 mm Wide: 9.0 mm |
| Flange Back Length | 12.5 mm |
| Mount | CS-Mount |
| Filter Size | M37.5 P=0.5mm |
| Dimensions (W x H x D) | ø47.0mm x 62.9mm |
| Weight | 126g |
