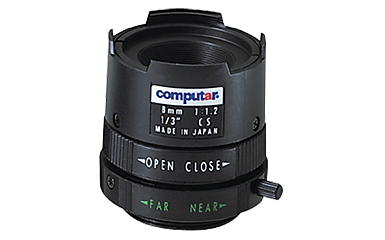

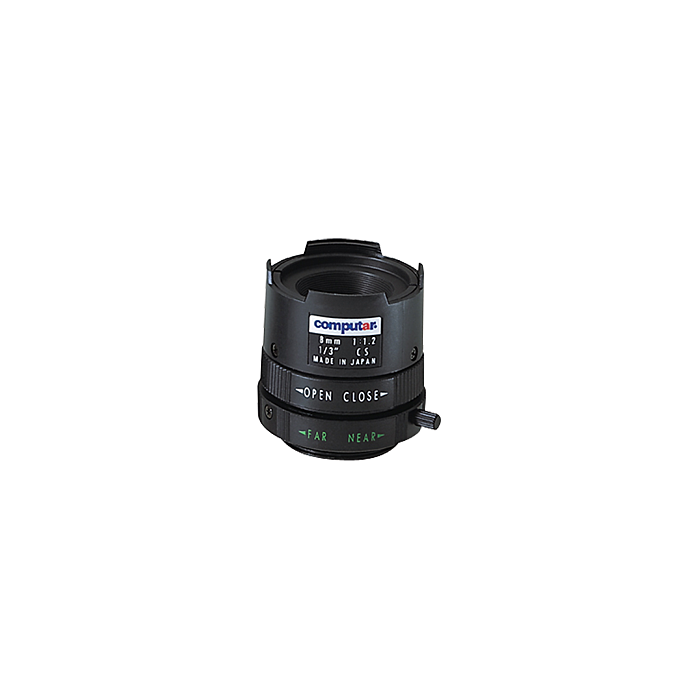

T0812FICS: CBC-Computar 1/3" 8mm f1.2 Monofocal, Manual Iris Lens
1/3 type Cameras, Fixed-focal Manual Iris, 8mm, F1.2
SKU
T0812FICS-3
Monofocal manual iris lenses are an economical choice providing fixed focal lengths and a very simple and compact design.
| Focal Length | 8mm |
| Max. Aperture Ratio | 1 : 1.2 |
| Max. Image Format | 4.8mm x 3.6mm |
| Operation Range | Iris: F1.2 - F16C Focus: 0.2m - Inf. |
| Control | Iris: Manual Focus: Manual |
| Object Dimension at M.O.D. | 12.5cm x 9.2cm |
| Angle of View | 1/3 type : 43.5° (D) / 34.7° (H) / 25.9° (V) 1/4 type : 32.4° (D) / 25.9° (H) / 16.4° (V) |
| Operating Temperature | -20°C - +50°C |
| Effective lens Aperture | Front: 15.0mm Rear: 8.8mm |
| Back Focal Length | 7.5mm |
| Flange Back Length | 12.5mm |
| Mount | CS-Mount |
| Filter Size | - |
| Dimensions | 34.5mm x 33mm |
| Weight | 37g |
