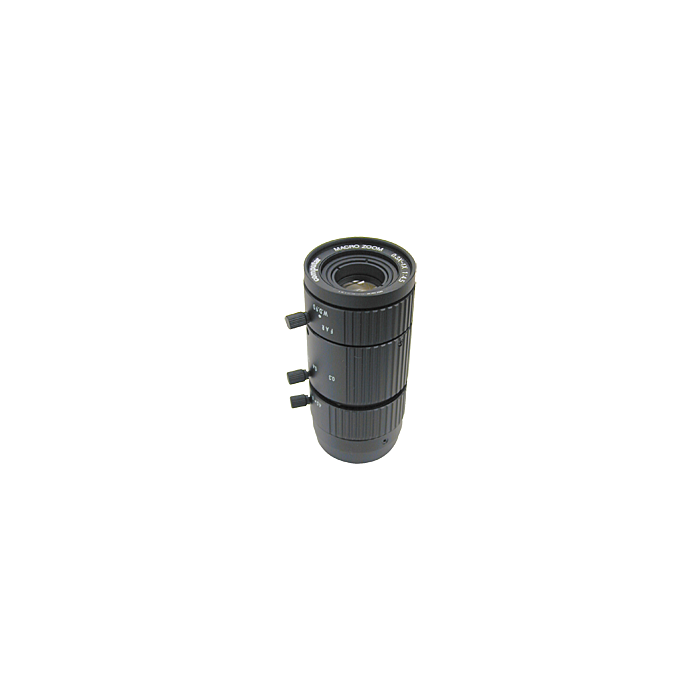

  • Computar MLM3X-MP Image # 1

MLM3X-MP: CBC-Computar 2/3" 3.3X Macro Zoom, Manual Iris Megapixel (C-Mount)

Quick Overview

2/3 type Cameras, Megapixel Macro Zoom, 0.3X - 1.0X.
Overview

Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.

Features:



  • Low Distortion
  • Assured excellent light intensity even in peripheral areas
  • Robust design with built-in locking mechanisms for focus and iris
  •


    Applications:



  • Machine Vision
  • Industrial Imaging
  • Specifications
    Max. Magnification 0.3X - 1.0X
    Max. Aperture Ratio 1 : 4.5
    Max. Image Format 8.8mm x 6.6mm
    Operation Range Iris: F4.5 - F22C
    Focus: 90mm
    Control Iris: Manual
    Focus: Manual
    Zoom: Manual
    Object Dimension at M.O.D. 2/3 type: (D)36.7mm x 10.8mm
                   (H)29.4mm x 8.7mm
                   (V)22.1mm x 6.6mm
    1/2 type: (D)26.7mm x 10.8mm
                   (H)21.4mm x 6.4mm
                   (V)16.1mm x 4.8mm
    Angle of View 2/3 type : (D)14.88° - 2.84°
                    (H)11.80° - 2.78°
                    (V)8.74° - 2.24°
    1/2 type : (D) 10.70° - 2.72°
                    (H) 8.48° - 2.18°
                    (V) 6.38° - 1.64°
    Operating Temperature -20°C - +50°C
    Effective lens Aperture Front: 15.5mm
    Rear: 7.0mm
    Back Focal Length 20.4mm
    Distortion 2/3 type: 0.3X Tele +0.02% (y=5.5)
                   1.0X Wide +1.78% (y=5.5)
    1/2 type: 0.3X Tele -0.12% (y=4.0)
                   1.0X Wide +0.77% (y=4.0)
    Flange Back Length 17.526mm
    Mount C-Mount
    Filter Size M34 P=0.5mm
    Dimensions 36.5mm x 79.5mm
    Weight 150g



    No Video available

    Computar MLM3X-MP Spec Sheet
