  • Computar M6Z1212M Image # 1

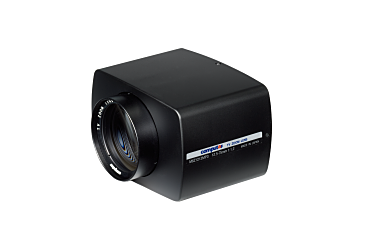

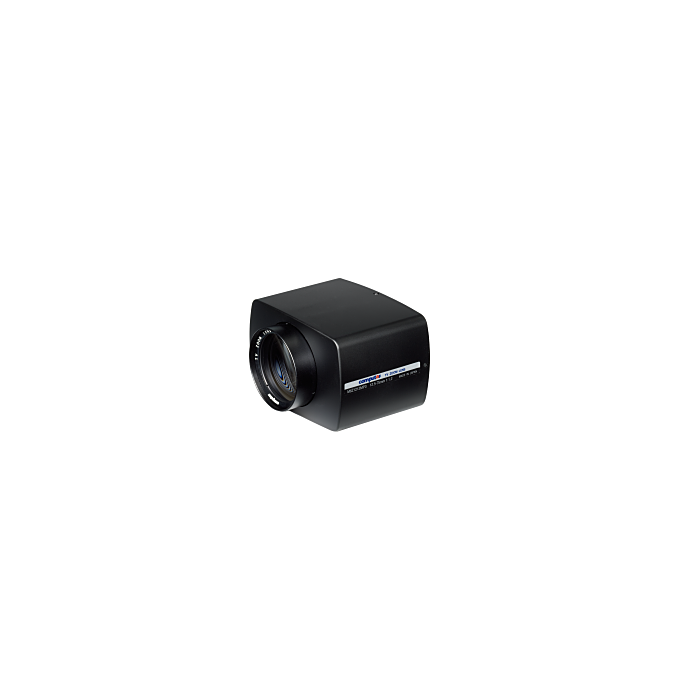

M6Z1212M: CBC-Computar 2/3" 12.5-75mm f1.2 6X Motorized Zoom, 3 motors (C-Mount)

Quick Overview

2/3 type, Cameras, Motorized Zoom, 6X, 12.5mm - 75mm, F1.2.
Overview

Features:

  • 6X Motorized Zoom Lens
  • 12.5-75mm
  • F1.2
  • Motorized Zoom, Focus and Iris
  • 2/3" Format, C-Mount
  • Specifications
    Focal Length 12.5mm - 75mm
    Max. Image Format 1:1.2
    Max. Image Format 8.8mm x 6.6mm (11mm)
    Operation Range Iris: F1.6 - F16C
    Focus: 1.0m - Inf.
    Zoom: 12.5mm - 75mm
    Control Iris: Motorized
    Focus: Motorized
    Zoom: Motorized
    Object Dimension at M.O.D. 12.5mm: 68.8cm x 51.6cm
    75mm: 12.1cm x 9cm
    Angle of View 2/3 type: 46.9° - 8.3° (D) x 38.3° - 6.7° (H) x 29.2° - 5.1° (V)
    1/2 type: 35.0° - 6.2° (D) x 29.2° - 5.1° (H) x 21.3° - 3.8° (V)
    1/3 type: 26.5° - 4.7° (D) x 21.3° - 3.8° (H) x 16.0° - 2.8° (V)
    Supply Voltage Auto Iris: DC8V
    Focus: DC8V
    Zoom: DC8V
    Current Auto Iris: 30mA or less
    Focus: 30mA or less
    Zoom: 25mA or less
    Response Time Auto Iris: Approx. 3 sec.
    Focus: Approx. 5 sec.
    Zoom: Approx. 4 sec.
    Preset Potentiometer -
    Operating Temperature -10°C - +50°C
    Effective Lens Aperture Front: φ46.5mm
    Rear:  φ15.6mm
    Back Focal Length 15.4mm
    Flange Back Length  17.526mm
    Mount  C-Mount
    Filter Size  M55 P=0.75mm
    Tripod Screw 1/4 - 20UNC
    Dimensions (W) 108mm x (H) 71mm x (D) 114.5mm
    Weight 750 g
