  • Computar M5018-MP2 Image # 1

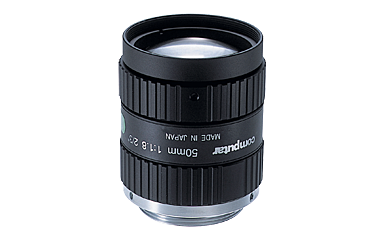

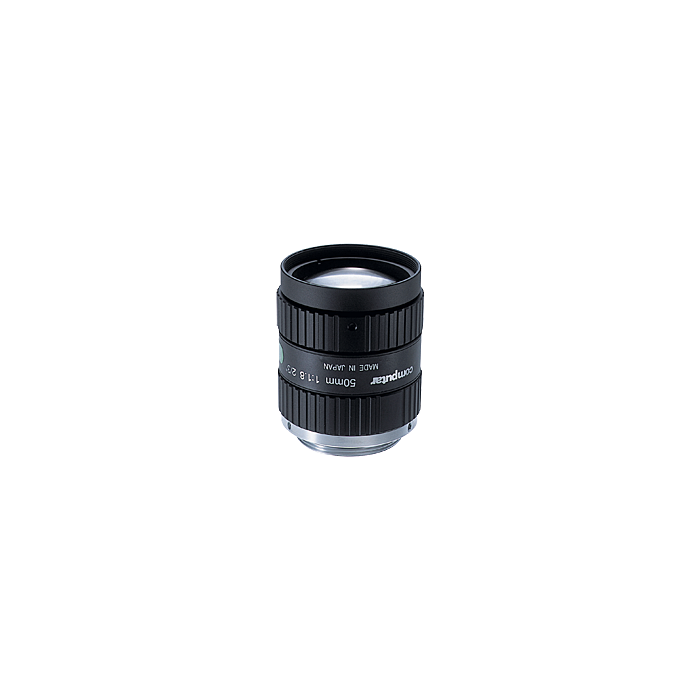

M5018-MP2: CBC-Computar 2/3" 50mm f1.8 w/locking Iris & Focus, Megapixel Lens (C-Mount)

Quick Overview

2/3 type, Megapixel Camera Lens, f=50mm, F1.8.
Overview

Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.

Features:

  • Captures full resolution of megapixel cameras
  • Low distortion
  • Assured excellent light intensity even in peripheral areas
  • High contrast and sharp picture in all areas of the screen
  • Compact design
  • Locking set screws for focus and iris
  • Specifications
    Focal Length 50mm
    Max. Aperture Ratio 1 : 1.8
    Max. Image Format 8.8mm x 6.6mm
    Operation Range Iris: F1.8 - F16C
    Focus: 0.5m - Inf.
    Control Iris: Manual
    Focus: Manual
    Object Dimension at M.O.D. 2/3 type: 8.7cm x 6.5cm
    1/2 type: 6.3cm x 4.8cm
    Angle of View 2/3 type : 13.1° (D) / 10.5° (H) / 7.9° (V)
    1/2 type : 9.5° (D) / 7.6° (H) / 5.7° (V)
    Operating Temperature -10°C - +50°C
    Effective lens Aperture Front: 25.5mm
    Rear: 9.6mm
    Distortion 2/3 type: -0.3%(y=5.5)
    1/2 type: -0.2%(y=4.0)
    Back Focal Length 13.1mm
    Flange Back Length 17.526mm
    Mount C-Mount
    Filter Size M30.5 P=0.5mm
    Dimensions 33.5mm x 38.2mm
    Weight 85g
