  • Computar M3Z1228C-MP Image #1

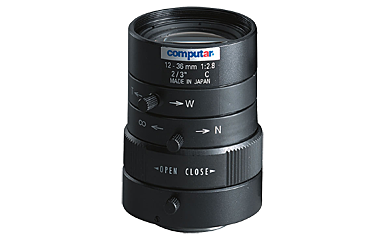

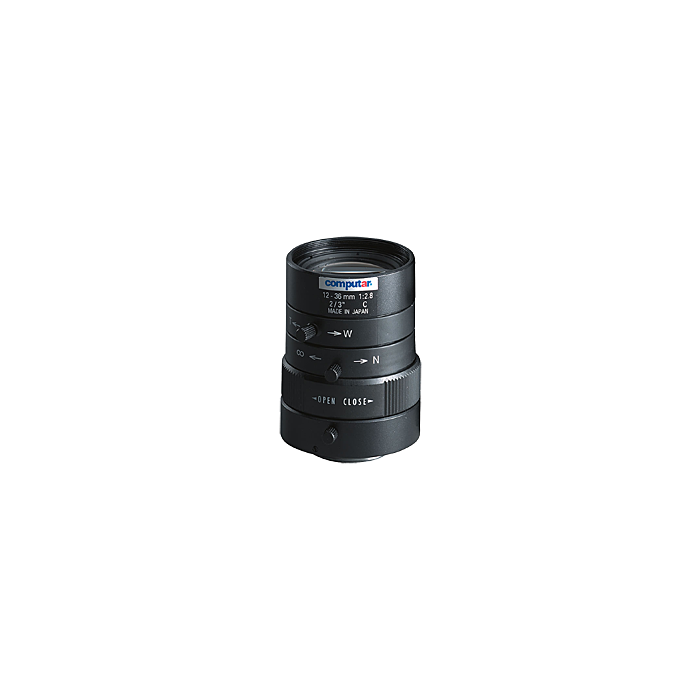

M3Z1228C-MP: CBC-Computar 2/3" 12 to 36mm Varifocal Manual Iris MP Lens (C-Mount)

Quick Overview

2/3" 12-36mm Varifocal, Manual Iris Megapixel (C Mount).
Overview

The Computar M3Z1228C-MP 3X zoom Megapixel lenses are used in Machine Vision applications such as Image Processing, Automated Inspection, Identification, Automated gauging, Guiding, Positioning and other Factory Automations.

Features:

  • Low Distortion
  • Assured excellent light intensity even in peripheral areas
  • Robust design with built-in locking mechanisms for focus and iris

  • Applications:

  • Industrial
  • Automation
  • Medical Imaging
  • Scientific Research
  • Traffic Monitoring
  • Security
  • Specifications
    Focal Length 12 to 36 mm
    Max. Aperture Ratio 1:2.8
    Max. Image Format 8.8 x 6.6 mm (ø 11 mm)
    Operation Range Iris: F2.8 to F16C
    Focus: 0.2m to infinity
    Zoom: 12mm - 36mm
    Control Iris: Manual
    Focus/Zoom: Manual
    Angle Of View 50.4 to 16.8° (D), 41 to 13.6° (H), 31.2 to 10.4° (V)
    Operating Temperature -20 to 50°C
    Effective Lens Aperture Front: ø27.2 mm
    Rear: ø12.1 mm
    Back Focal Length Tele: 13.5 mm
    Wide: 14.7 mm
    Flange Back Length 17.526 mm
    Mount C-Mount
    Filter Size M35.5 P=0.5mm
    Dimensions (W x H) 41.6 x 53 mm
    Weight 105 g
