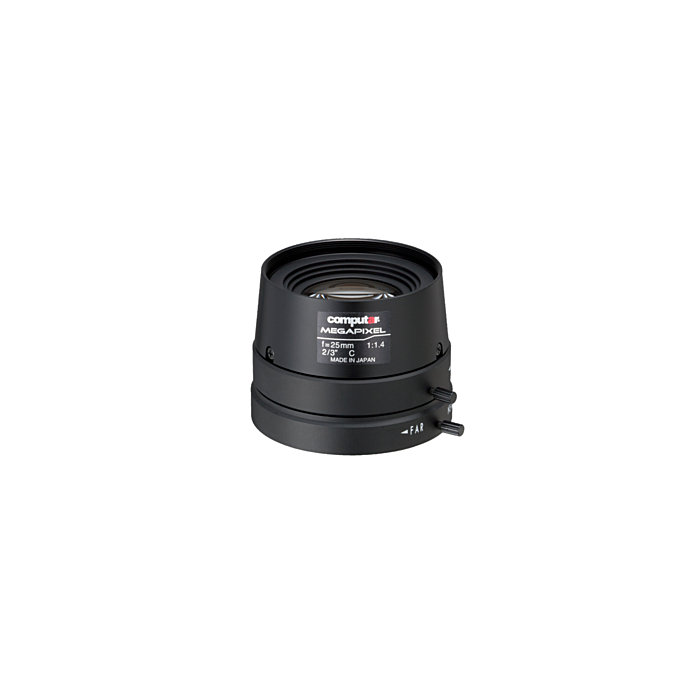

  • Computar M2514FIC-MP Image # 1

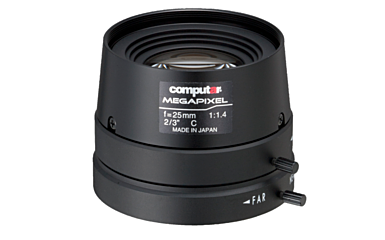

CBC-Computar M2514FIC-MP 5 Megapixel 2/3" 25mm, F1.4, Manual Iris Lens, (C-Mount)

Quick Overview

2/3 type, 5 Megapixel Cameras, Fixed-focal, Manual Iris, f=25mm, F1.4.
Overview

CBC-Computar M2514FIC-MP 2/3" 25mm Manual Iris 5 Megapixel Lens is designed for precision megapixel applications in both security and industrial settings.



Features:

  • Over 5.0 Megapixel
  • Full HD Format
  • 25mm 2/3” C Mount
  • Manual Iris
  • Peak performance at long distance
  • Designed for ITS & Security applications
  • DC Auto-iris model available
  •


    Applications:



  • Intelligent Transportation
  • Security Applications
  • Specifications
    Focal Length 25mm
    Max. Aperture Ratio 1:1.4
    Max. Image Format 6.6mm x 8.8mm(φ11mm)
    Operation Range Iris: F1.4 - F16C
    Focus: 1.5m - Inf.
    Zoom: -
    Control Iris: Manual
    Focus: Manual
    Zoom: -
    Angle of View 2/3 type: 24.9° (D) x 20.0° (H) x 15.1° (V)
    1/2 type: 18.2° (D) x 14.6° (H) x 11.0° (V)
    1/3 type: 13.7° (D) x 11.0° (H) x 8.2° (V)
    Effective Lens Aperture Front: φ23.4mm
    Rear:  φ14.6mm
    Back Focal Length 13.3mm
    Flange Back Length  17.526mm
    Mount  C-Mount
    Filter Size  M40.5 x 0.5
    Dimensions φ47.5mm × 37.5mm
    Weight 124.8 g
