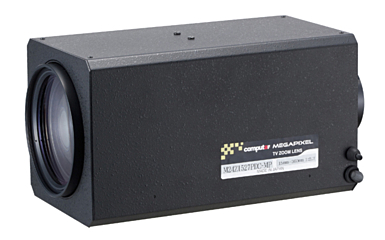

  • Computar M24Z1527PDC-MP Image # 1

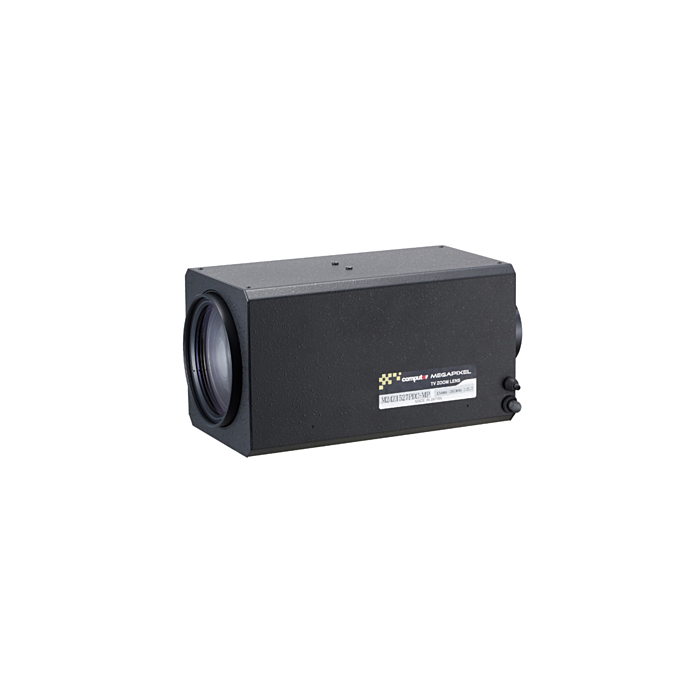

CBC-Computar M24Z1527PDC-MP 2/3" 15-360mm 24X Megapixel Auto Iris Zoom Lens w/Preset (C-Mount)

Quick Overview

2/3 type, Megapixel Cameras, Motorized Zoom, 24X, 15mm‐360mm, F2.7.
Overview

Features:

  • Over 2 Megapixel
  • 27X Zoom Lens
  • 15-360mm
  • F2.7
  • DC Auto Iris
  • Motorized Zoom and Focus
  • Preset Zoom and Focus
  • 2/3" Format, C-Mount
  • Specifications
    Focal Length 15mm - 360mm
    Max. Apeture Ratio 1:2.7
    Max. Image Circle φ11mm
    Operation Range Iris: F2.7 - F500C
    Focus: 5m - Inf.
    Zoom: 15mm - 360mm
    Control Iris: DC Auto Iris
    Focus: Motorized
    Zoom: Motorized
    Angle of View 2/3 type: 40.2° - 1.8° (D) x 32.3° - 1.4° (H) x 24.4° - 1.1° (V)
    1/1.8 type: 32.8° - 1.5° (D) x 26.3° - 1.2° (H) x 19.8° - 0.9° (V)
    1/2 type: 29.4° - 1.3° (D) x 23.6° - 1.0° (H) x 17.8° - 0.8° (V)
    Supply Voltage Auto Iris: -
    Focus: DC6V
    Zoom: DC6V
    Current Auto Iris: -
    Focus: 90mA or less
    Zoom: 90mA or less
    Response Time Auto Iris: -
    Focus: Approx. 6.5 sec.
    Zoom: Approx. 6.5 sec.
    Preset Potentiometer Auto Iris: -
    Focus: 5kΩVR
    Zoom: 5kΩVR
    Coil Drive: 190Ω
    Control: 1000Ω
    Operating Temperature -10°C - +50°C
    Effective Lens Aperture Front: φ66mm
    Rear:  φ13.8mm
    Back Focal Length 19.3mm
    Flange Back Length  17.526mm
    Mount  C-Mount
    Filter Size  M77 P=1mm
    Tripod Screw 1/4 - 20UNC
    Dimensions (W) 101mm x (H) 102.4mm x (D) 221.1mm
    Weight 2180 g
