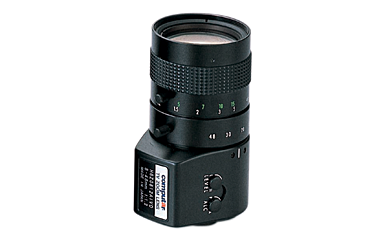

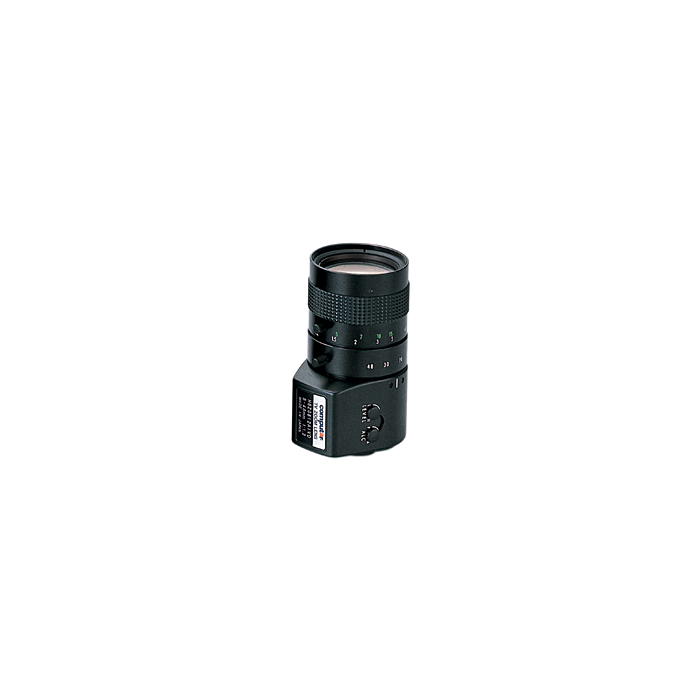

  • Computar H6Z0812AIVD Image # 1

CBC-Computar H6Z0812AIVD 1/2" 8-48mm f1.2 6X Manual Zoom, Video Auto Iris lens (C-Mount)

Quick Overview

1/2 type, Cameras, Manual Zoom VIDEO Drive, 6X, 8mm - 48mm, F1.2.
Overview Computar Manual Zoom Lenses provide manual adjustment of focal length, iris and focus. For use where a variable angle of view is required. Main applications for this lens include inspection, machine vision and robotics.
Specifications
Focal Length 8mm - 48mm
Max. Image Format 1:1.2
Max. Image Format 6.4mm x 4.8mm (8mm)
Operation Range Iris: F1.2 - F560C
Focus: 1.2m - Inf.
Zoom: 8mm - 48mm
Control Iris: Video Auto Iris
Focus: Manual
Zoom: Manual
Object Dimension at M.O.D. 8mm: 98.4cm x 72.2cm
48mm: 16.8cm x 12.8cm
Angle of View 1/2 type: 55.8° - 9.9° (D) x 44.6 - 8.0° (H) x 33.5° - 6.1° (V)
1/3 type: 41.8° - 7.5° (D) x 33.5° - 6.1° (H) x 25.2° - 4.6° (V)
1/4 type: 31.4° - 5.6° (D) x 25.2° - 4.6° (H) x 18.9° - 3.4° (V)
Supply Voltage DC8.5V - DC16V
Current Less than 35mA
Response Time Approx. 2 sec.
Light Weighting Method Adjustable between Average - Peak (to be Set at Average at Factory)
Input Signal Video Signal (V. or V.S.)
Iris Accuracy 15% at Video Signal Level
Sensitivity Adjustment 0.5V(p-p) - 1.0V(p-p) (Video Signal)
Input Impedance High Impedance
Operating Temperature -20°C - +50°C
Effective Lens Aperture Front: φ39.2mm
Rear:  φ16.6mm
Back Focal Length 11.4mm
Flange Back Length  17.526mm
Mount  C-Mount
Filter Size  M49 P=0.75mm
Tripod Screw -
Dimensions (W) 52.6mm x (H) 64mm x (D) 97mm
Weight 295 g
