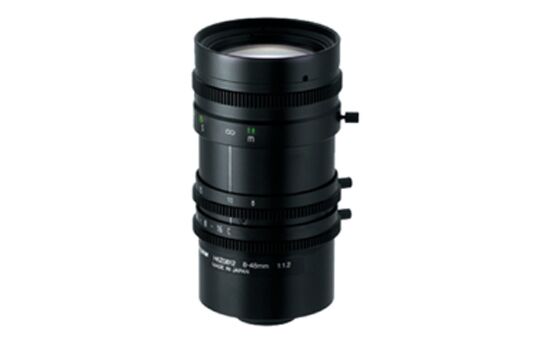

H6Z0812: CBC-Computar CBF-1 Filter 1/2" 8-48 mm F1.2 6X Manual Zoom and Iris (C-Mount)

1/2", 8-48 mm, f1.2, 6X, Manual Zoom, Manual Iris (C Mount).
SKU
H6Z0812

Computar Manual Zoom Lenses provide manual adjustment of focal length, iris and focus. For use where a variable angle of view is required. Main applications for this lens include inspection, machine vision and robotics.

Features:

  • 6X
  • 8mm - 48mm F1.2
  • For 1/2 type Cameras
  • Manual Zoom
  • C-Mount

  • Applications:

  • Inspection
  • Machine Vision
  • Robotics
  • Factory Automation
  • Industrial
  • Model No. H6Z0812
    Focal Length 8 - 48 mm
    Max. Aperture Ratio 1:1.2
    Max. Image Format 6.4 x 4.8 mm
    Operation Iris: Manual, F1.2-16C
    Focus: Manual, 1.2 m-Inf.
    Zoom: Manual, 8 - 48 mm
    Object Dimension at M.O.D. 8mm - 98.4 x 72.2 cm
    48mm - 16.8 x 12.8 cm
    Angle Of View D: 1/2" - 55.8° - 9.9° 1/3" - 41.8° - 7.5°
    Effective Lens Aperture Front - 32.9 mm
    Rear - 16.6 mm
    Back Focal Length 11.4 mm
    Flange Back Length 17.526 mm
    Mount C-Mount
    Filter Size M49 P=0.75 mm
    Dimesions 51.75 x 97 mm
    Weight 305 g
