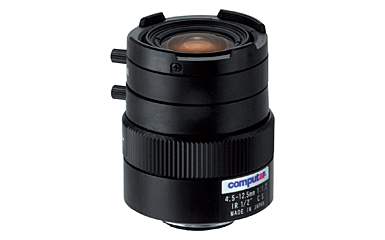

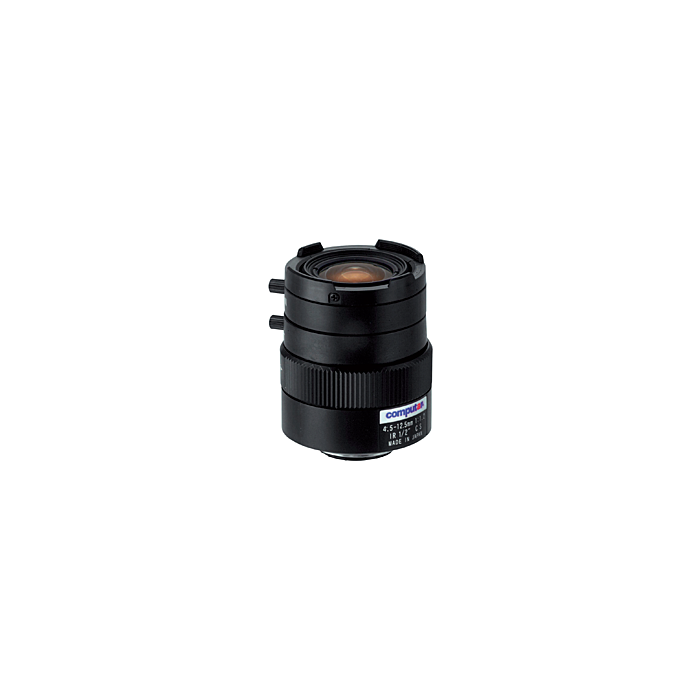

H3Z4512CS-IR (H3Z4512CSIR): CBC-Computar 1/2" 4.5-12.5mm f1.2 w/iris & focus (CS-Mount)
1/2" 4.5-12.5mm f1.2 Varifocal, Manual Iris (CS Mount) Day/Night IR
SKU
H3Z4512CS-IR
Computar Varifocal IR (infrared) manual iris lenses are designed for use with Day/Night cameras. They eliminate focus shift in night mode, especially in the presence of IR lighting. All lenses are CS-Mount, comprised of all glass optics, come with locking set screws and a durable metal barrel and mount, and are covered by a three year warranty.
| Focal Length | 4.5 - 12.5mm |
| Max. Aperture Ratio | 1:1.2 |
| Max. Image Format | 6.4 x 4.8 mm (ø8 mm) |
| Operation Range | Iris: F1.2 to F16C Focus: 0.3m to infinity Zoom: 4.5mm - 12.5mm |
| Control | Iris: Manual Focus/Zoom: Manual |
| Object Dimension at M.O.D. | 4.5mm: 53.7cm x 35.6cm 12.5mm: 16.1cm x 12cm |
| Angle Of View | 1/2 type - 108.0 - 37.6°(D), 83.7 - 30.1° (H), 61.3 - 22.6° (V) 1/3 type - 77.9 - 28.3° (D), 61.3 - 22.6° (H), 45.3 - 17.0° (V) 1/4 type - 57.2 - 21.2° (D), 45.3 - 17.0° (H), 33.7 - 12.7° (V) |
| Operating Temperature | -20 to 50°C |
| Effective Lens Aperture | Front: ø19.9 mm Rear: ø9.9 mm |
| Back Focal Length | Tele: 16.5 mm Wide: 8.5 mm |
| Flange Back Length | 12.5 mm |
| Mount | CS-Mount |
| Filter Size | M35.5 P=0.5mm |
| Dimensions (W x H x D) | ø41.6mm x 48.8mm |
| Weight | 66g |
