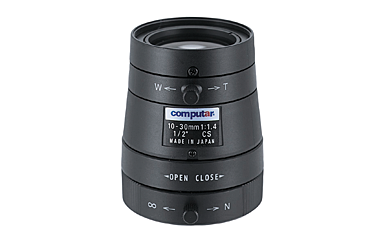

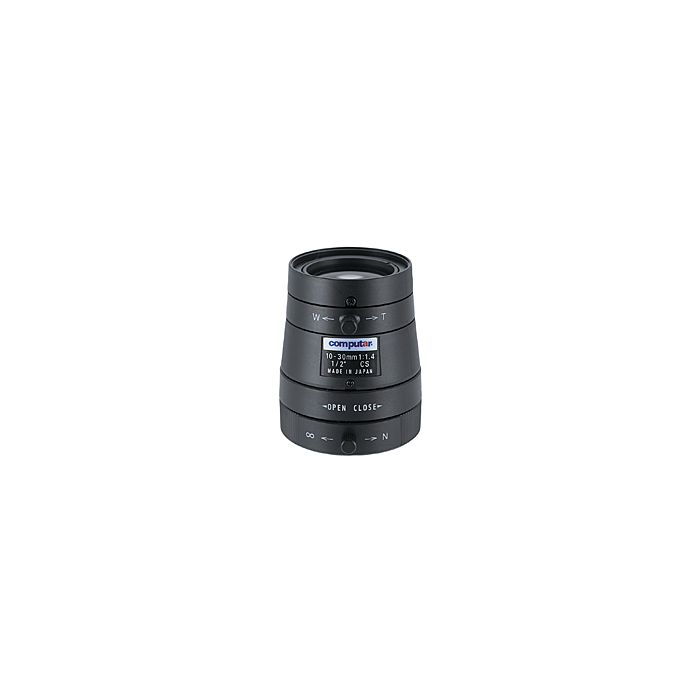

H3Z1014CS: CBC-Computar 1/2" 10 - 30mm f1.4 w/iris & focus, Day/Night (CS-Mount)
1/2" 10-30mm f1.4 Varifocal, Manual Iris (CS Mount)
SKU
Computar H3Z1014CS
Computar varifocal manual iris lenses offer maximum flexibility in camera installations requiring a wide range of focal lengths. Focal length adjustments can be made with a turn of the dial, virtually eliminating the cost and inventory problems associated with improper monofocal lens selection. All lenses are CS-Mount, comprised of all glass optics, come with locking setscrews and a durable metal barrel and mount, and are covered by a three year warranty.
| Focal Length | 10 - 30mm |
| Max. Aperture Ratio | 1:1.4 |
| Max. Image Format | 6.4 x 4.8 mm (ø8 mm) |
| Operation Range | Iris: F1.4 to F16C Focus: 0.6m to infinity Zoom: 10mm - 30mm |
| Control | Iris: Manual Focus/Zoom: Manual |
| Object Dimension at M.O.D. | 10mm: 38.8cm x 28.6cm 30mm: 13.1cm x 9.9cm |
| Angle Of View | 1/2 type - 44.8 - 15.6°(D), 35.8 - 12.5° (H), 26.8 - 9.4° (V) 1/3 type - 35.6 - 11.7° (D), 26.8 - 9.4° (H), 20.1 - 7.1° (V) |
| Operating Temperature | -20 to 50°C |
| Effective Lens Aperture | Front: ø26.6 mm Rear: ø9.0 mm |
| Back Focal Length | Tele: 9.8 mm Wide: 11 mm |
| Flange Back Length | 12.5 mm |
| Mount | CS-Mount |
| Filter Size | M37.5 P=0.5mm |
| Dimensions (W x H x D) | ø47mm x 57.7mm |
| Weight | 125g |
