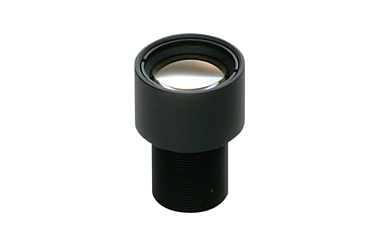

  • Computar H2520KP Image # 1

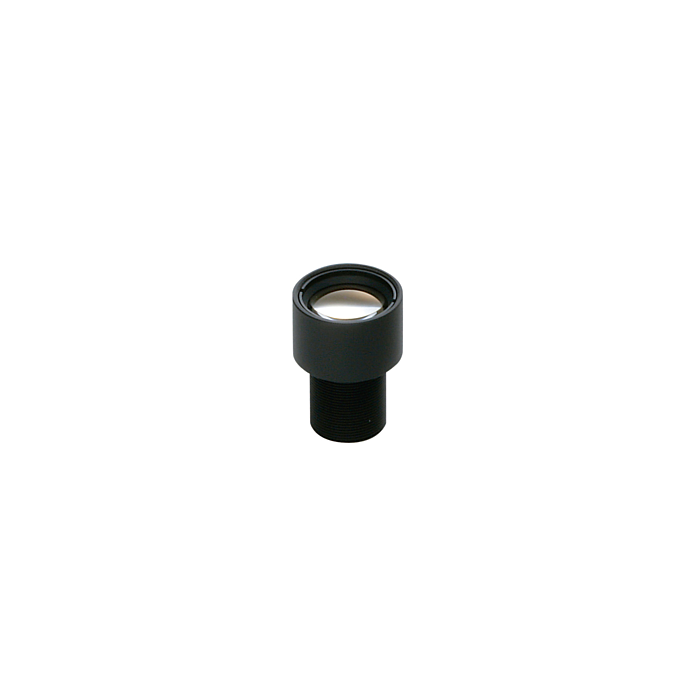

H2520KP: CBC-Computar 1/2" 25mm Board Lens (S-Mount)

Quick Overview

1/2 type, Format Board Cameras, No Iris, f = 25.0mm, F2.0, Megapixel lens.
Overview

Features:

  • 1/2" Format
  • 25mm Fixed Lens
  • Over 2MP
  • 14.5° HFOV
  • M12 (S Mount)
  • F2.0
  • Specifications
    Focal Length 25.0mm
    Max. Apeture Ratio 1:2.0
    Max. Image Format 6.4mm x 4.8mm(φ8mm)
    Operation Range Iris: -
    Focus: 0.13m - Inf.
    Object Dimension at M.O.D. 1/2 type: 3.1cm x 2.3cm (φ3.9)
    1/3 type: 2.3cm x 1.7cm (φ2.9)
    Coating MgF2 Single Coat (All Surfaces λ= 510nm)
    Angle of View 1/2 type: 18.0° (D) x 14.5° (H) x 10.9° (V)
    1/3 type: 13.6° (D) x 10.9° (H) x 8.2° (V)
    1/4 type: 10.3° (D) x 8.2° (H) x 6.2° (V)
    Effective Lens Aperture Front: φ12.2mm
    Rear:  φ8.6mm
    Distortion 1.0% (y=4)
    Back Focal Length 9.23mm
    Flange Back Length  -
    Mount M12 P=0.5mm
    Dimensions φ17.0mm x 23.8mm
    Weight 10.0 g
