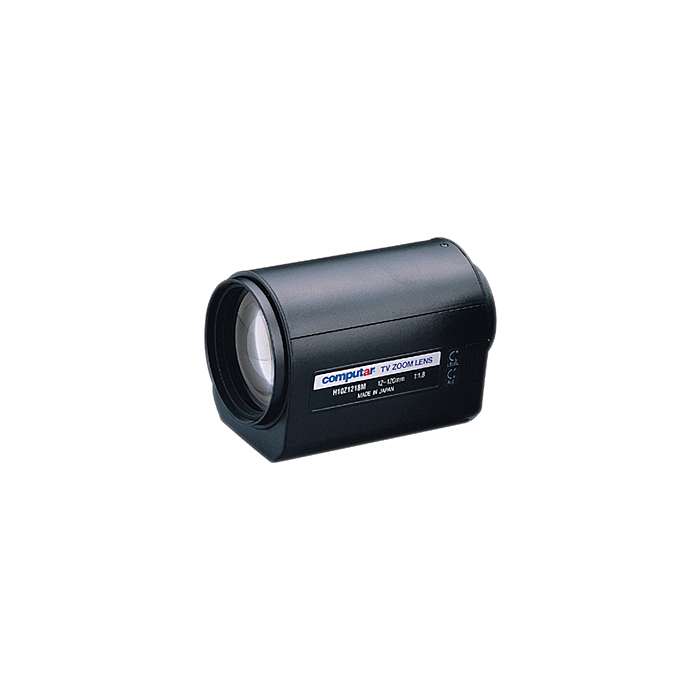

H10Z1218M: CBC-Computar 1/2" 12-120mm f1.8 10X Motorized Zoom Lens, 3 motors (C-Mount)
1/2 type, Cameras, Motorized Zoom, 10X, 12mm - 120mm, F1.8.
SKU
Computar H10Z1218M
Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.
| Focal Length | 12mm - 120mm |
| Max. Image Format | 1:1.8 |
| Max. Image Format | 6.4mm x 4.8mm (8mm) |
| Operation Range | Iris: F1.8 - F22C Focus: 1.5m - Inf. Zoom: 12mm - 120mm |
| Control | Iris: Motorized Focus: Motorized Zoom: Motorized |
| Object Dimension at M.O.D. | 12mm: 78.7cm x 58.9cm 120mm: 8.1cm x 6cm |
| Angle of View | 1/2 type: 36.4° - 3.8° (D) x 29.4° - 3.1° (H) x 22.2° - 2.3° (V) 1/3 type: 27.6° - 2.9° (D) x 22.2° - 2.3° (H) x 16.7° - 1.7° (V) 1/4 type: 20.8° - 2.1° (D) x 16.7° - 1.7° (H) x 12.5° - 1.3° (V) |
| Supply Voltage | DC8V |
| Current | 20mA or less |
| Response Time | Approx. 2.5 sec. |
| Preset Potentiometer | - |
| Operating Temperature | -10°C - +50°C |
| Effective Lens Aperture | Front: φ54.0mm Rear: φ9.2mm |
| Back Focal Length | 14.4mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M62 P=0.75mm |
| Tripod Screw | 1/4 - 20UNC |
| Dimensions | (W) 70mm x (H) 81mm x (D) 123.5mm |
| Weight | 635 g |
