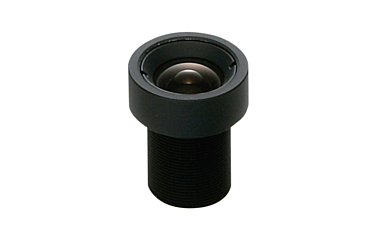

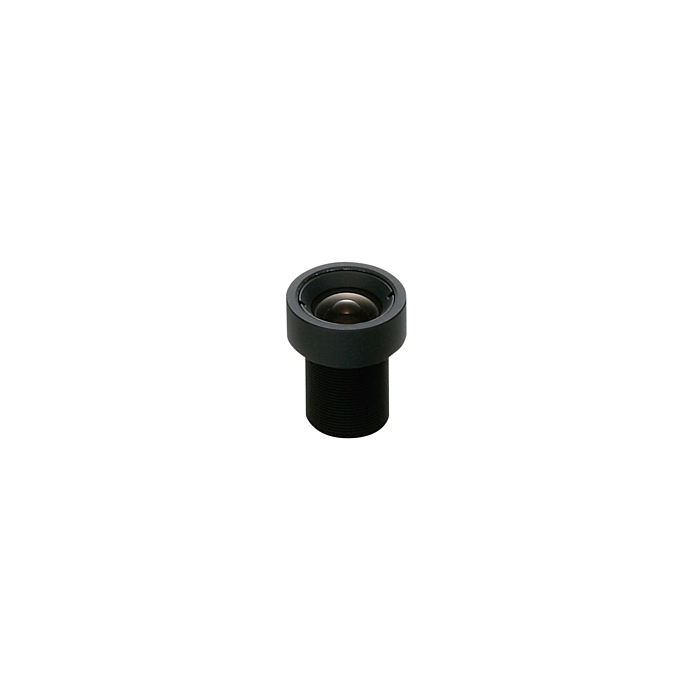

H0624KP: CBC-Computar 1/2" 6mm Board Lens (S-Mount)

1/2 type, Format Board Cameras, No Iris, f = 6.0mm, F2.4, Megapixel lens.
SKU
H0624KP

Features:

  • 1/2" Format
  • 6mm Fixed Lens
  • Over 2MP
  • 59.1° HFOV
  • M12 (S Mount)
  • F2.4
  • Focal Length 6.0mm
    Max. Apeture Ratio 1:2.4
    Max. Image Format 6.4mm x 4.8mm(φ8mm)
    Operation Range Iris: -
    Focus: 0.1m - Inf.
    Object Dimension at M.O.D. 1/2 type: 12.2cm x 8.9cm (φ15.7)
    1/3 type: 8.9cm x 6.6cm (φ11.3)
    Coating MgF2 Single Coat (All Surfaces λ= 510nm)
    Angle of View 1/2 type: 72.5° (D) x 59.1° (H) x 45.0° (V)
    1/3 type: 55.6° (D) x 45.0° (H) x 34.0° (V)
    1/4 type: 42.3° (D) x 34.0° (H) x 25.6° (V)
    Effective Lens Aperture Front: φ10.0mm
    Rear:  φ8.2mm
    Distortion -9% (y=4)
    Back Focal Length 6.58mm
    Flange Back Length  -
    Mount M12 P=0.5mm
    Dimensions φ17.0mm x 20.5mm
    Weight 7.0 g
