  • Computar E3Z4518CS-MPIR Image # 1

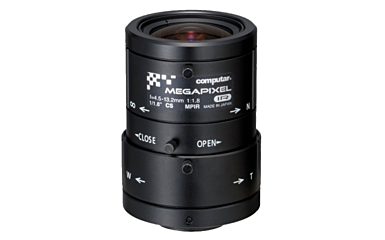

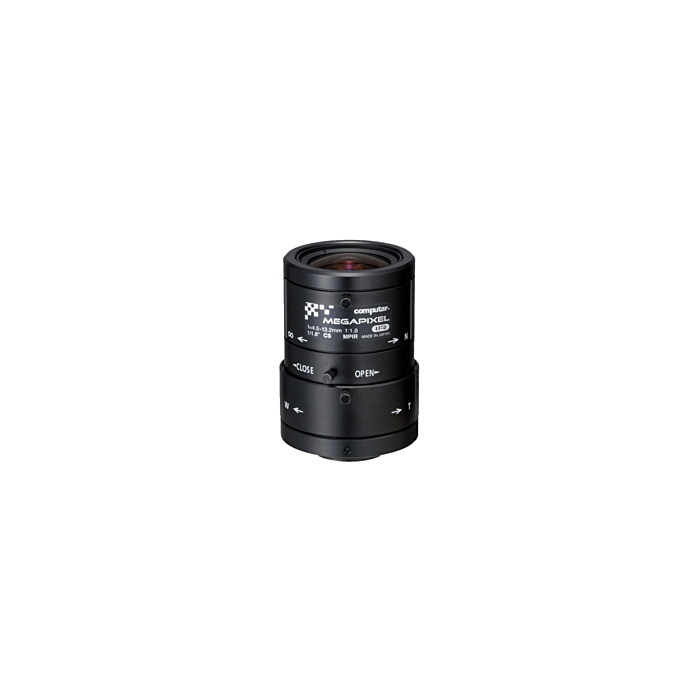

E3Z4518CS-MPIR: CBC-Computar 1/1.8" type Megapixel Day & Night Lens (CS-Mount)

Quick Overview

5 Megapixel, 1/1.8" 4.5-13.2mm F1.8 Varifocal, HD Series, Manual (CS Mount) Day/Night IR
Overview

Features:

  • 1/1.8” Format
  • 5 Megapixel
  • 4.5-13.2mm Varifocal
  • Full HD Format
  • Manual Iris
  • Precise Focus Adjustment
  • IR Corrected Optics
  • Corner Brightness
  • Specifications
    Focal Length 4.5mm - 13.2mm
    Max. Aperture Ratio 1 : 1.8
    Max. Image Format 6.4mm x 4.8mm
    Operation Range Iris: F1.8 - F16C
    Focus: 0.5m - Inf.
    Zoom: 4.5mm - 13.2mm
    Control Iris: Manual
    Focus: Manual
    Zoom: Manual
    Angle of View 1/1.8 type (16:9): 112.8° - 40.1° (D) / 105.3° - 35.3° (H) / 72.3° - 20.3° (V)
    1/1.8 type (4:3): 112.8° - 40.1° (D) / 100.1° - 32.6° (H) / 83.9° - 24.8° (V)
    1/2 type (4:3): 100.3° - 35.7° (D) / 80° - 28.6° (H) / 59.8° - 21.5 (V)
    Operating Temperature -10°C - +50°C
    Effective lens Aperture Front: 25.1mm
    Rear: 10.0mm
    Back Focal Length 18.83mm - 8.78mm
    Flange Back Length 12.5mm
    Mount CS-Mount
    Filter Size -
    Dimensions 42mm x 61mm
    Weight 148g



    No Video available
    Computar E3Z4518CS-MPIR
    Request a Quote

    * Required Fields
