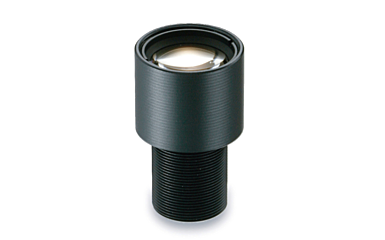

  • Computar E2520KV Image # 1

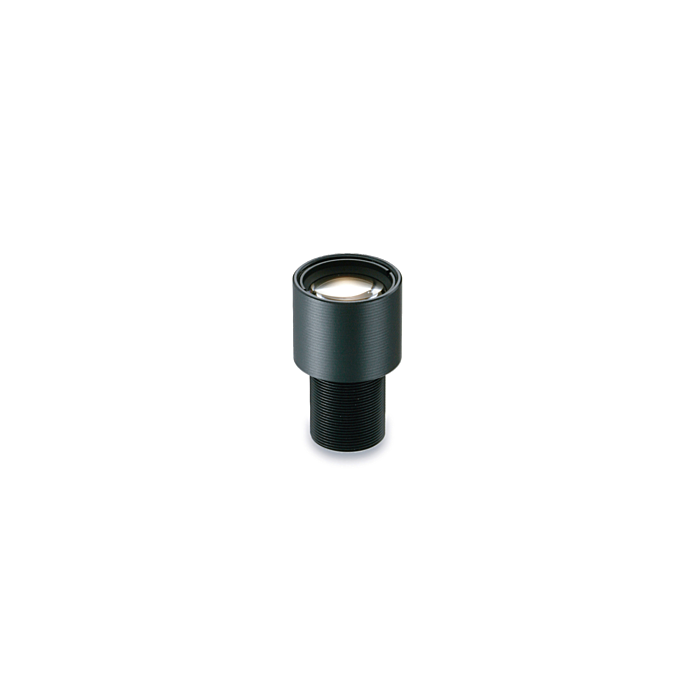

CBC-Computar E2520KV 1/1.8" 25mm Board Lens (S-Mount)

Quick Overview

1/1.8 type, Format Board Cameras, No Iris, f = 25.0mm, F2.0, 3 Megapixel lens.
Overview

Features:

  • 1/1.8" Format
  • 25mm Fixed Lens
  • Over 3MP
  • 15.7° HFOV
  • M12 (S Mount)
  • F2.0
  • Specifications
    Focal Length 25.0mm
    Max. Apeture Ratio 1:2.0
    Max. Image Format 6.9mm x 5.2mm(φ8.64mm)
    Operation Range Iris: -
    Focus: 0.15m - Inf.
    Object Dimension at M.O.D. 1/2 type: 3.7cm x 2.7cm (φ4.6)
    1/3 type: 2.7cm x 2.1cm (φ3.4)
    Coating MgF2 Single Coat (All Surfaces λ= 510nm)
    Angle of View 1/1.8 type: 19.50° (D) x 15.67° (H) x 11.86° (V)
    1/2 type: 18.10° (D) x 14.55° (H) x 10.96° (V)
    1/3 type: 13.66° (D) x 10.96° (H) x 8.24° (V)
    Effective Lens Aperture Front: φ12.2mm
    Rear:  φ8.0mm
    Distortion -0.02% (y=4.32)
    Back Focal Length 9.30mm
    Flange Back Length  -
    Mount M12 P=0.5mm
    Dimensions φ17.0mm x 28.1mm
    Weight 10.0 g
