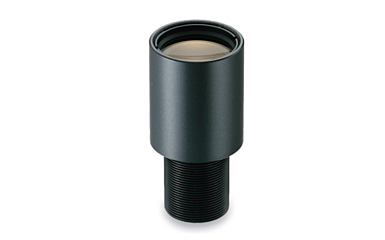

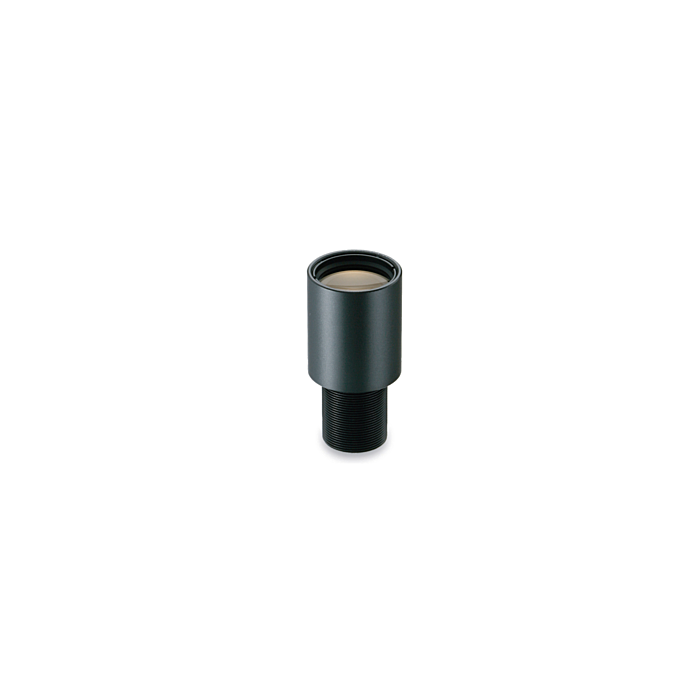

  • Computar E1220KV Image # 1

CBC-Computar E1220KV 1/1.8" 12mm Board Lens (S-Mount)

Quick Overview

1/1.8 type, Format Board Cameras, No Iris, f = 12.0mm, F2.0, 3 Megapixel lens.
Overview

Features:

  • 1/1.8" Format
  • 12mm Fixed Lens
  • Over 3MP
  • 32.1° HFOV
  • M12 (S Mount)
  • F2.0
  • Specifications
    Focal Length 12.0mm
    Max. Apeture Ratio 1:2.0
    Max. Image Format 6.9mm x 5.2mm(φ8.64mm)
    Operation Range Iris: -
    Focus: 0.2m - Inf.
    Object Dimension at M.O.D. 1/2 type: 11.1cm x 8.3cm (φ13.9)
    1/3 type: 8.3cm x 6.2cm (φ10.4)
    Coating MgF2 Single Coat (All Surfaces λ= 510nm)
    Angle of View 1/1.8 type: 39.50° (D) x 32.05° (H) x 24.44° (V)
    1/2 type: 36.80° (D) x 29.84° (H) x 22.61° (V)
    1/3 type: 28.06° (D) x 22.61° (H) x 17.05° (V)
    Effective Lens Aperture Front: φ13mm
    Rear:  φ8.1mm
    Distortion +0.04% (y=4.32)
    Back Focal Length 13.34mm
    Flange Back Length  -
    Mount M12 P=0.5mm
    Dimensions φ17.0mm x 34.4mm
    Weight 12.0 g
