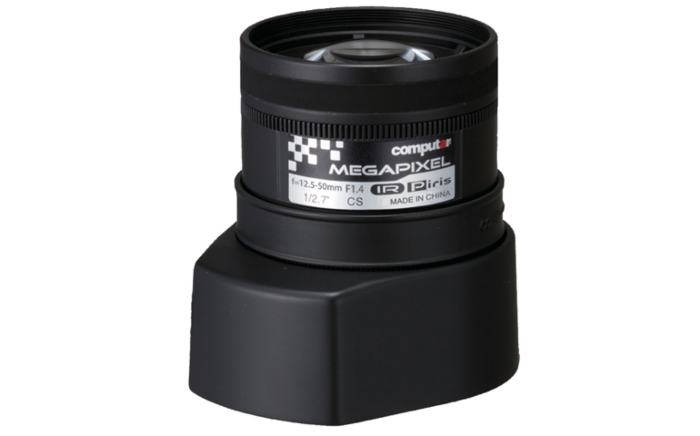

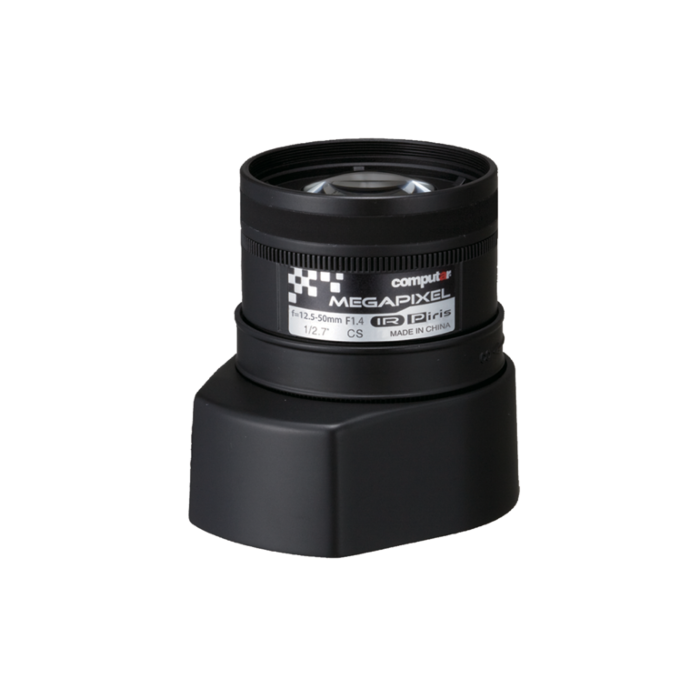

  • Computar AG4Z1214KCS-MPIR 1/2.7 Format 12.5-50mm F1.4 D/N P-IRIS Image

CBC-Computar AG4Z1214KCS-MPIR 1/2.7 Format 12.5-50mm F1.4 D/N P-IRIS (CS-Mount)

Quick Overview

"A" Series 3 Megapixel, 1/2.7" 12.5-50mm F1.4 Varifocal, HD Series, P-iris (CS Mount) Day/Night IR.
Overview

For use with special P-Iris cameras ONLY!

To protect cameras from damage, P-iris connector plugs are designed NOT TO fit regular cameras.

Features:

  • 1/2.7” Format
  • 3 Megapixel
  • 12.5-50mm Varifocal
  • Full HD Format
  • P-iris (precise iris) technology
  • Precise Focus Adjustment
  • New Focus Lock System
  • IR Corrected Optics
  • Corner Brightness
  • Manual iris and DC Auto iris models also available
  • Compatible with Allied Vision Technology's GT1290 Series cameras (add V31 to P/N)

  • Applications:

  • Industrial
  • Automation
  • Medical Imaging
  • Scientific Research
  • Traffic Monitoring
  • Security
  • Specifications
    Focal Length 12.5 to 50 mm
    Max. Aperture Ratio 1:1.4
    Max. Image Format 3.2 x 5.8 mm (ø6.6 mm)
    Operation Range Iris: F1.4 to F16C
    Focus: 1.0 m to infinity
    Zoom: 12.5mm - 50mm
    Control Iris: Stepping Motor
    Focus/Zoom: Manual
    Angle Of View 30.3 to 7.7° (D), 26.3 to 6.7° (H), 14.5 to 3.8° (V)
    Operating Temperature -10 to 50°C
    Effective Lens Aperture Front: ø21.7 mm
    Rear: ø9.1 mm
    Back Focal Length Tele: 7.3 mm
    Wide: 11.6 mm
    Flange Back Length 12.5 mm
    Mount CS-Mount
    Filter Size M40.5 P=0.5mm
    Dimensions (W x H x D) 46 x 60 x 58.2 mm
    Weight 81g
