  • CBC A6Z8516CS-MP Image # 1

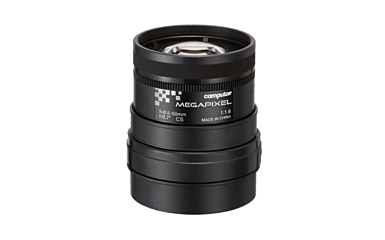

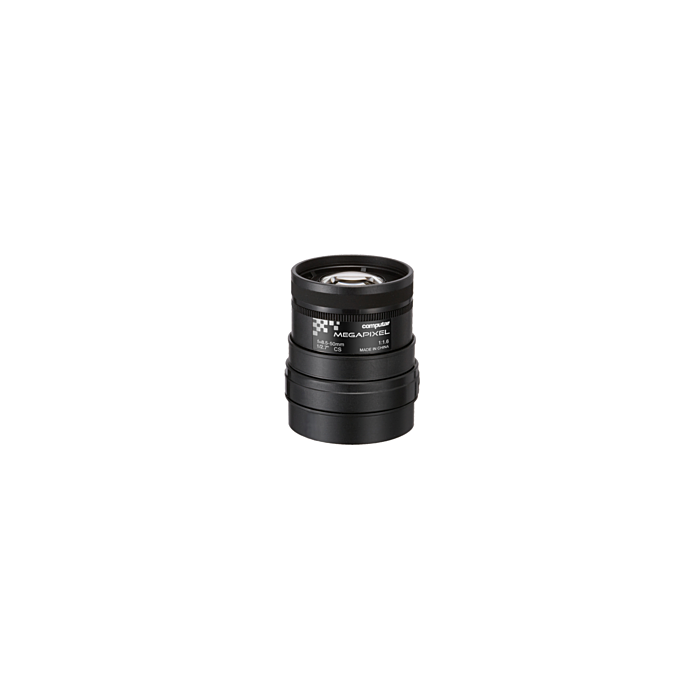

A6Z8516CS-MP: CBC-Computar 1/2.7 type Megapixel Cameras, Vari‐focal Manual Iris lens (CS-Mount)

Quick Overview

6X, 8.5mm‐50mm, F1.6
Overview

Features:

  • 1/2.7” Format
  • 3 Megapixel
  • 8.5-50mm Varifocal
  • Full HD Format
  • Manual iris
  • Precise Focus Adjustment
  • New Focus Lock System
  • Corner Brightness
  • DC Auto iris and P-iris models also available
  • Specifications
    Focal Length 8.5mm - 50mm
    Max. Aperture Ratio 1 : 1.6
    Max. Image Format 3.2mm x 5.8mm
    Operation Range Iris: F1.6 - F16C
    Focus: 1.0m - Inf.
    Zoom: 8.5mm - 50mm
    Control Iris: Manual
    Focus: Manual
    Zoom: Manual
    Angle of View 1/2.7 type (16:9): 43.7°‐ 7.7° (D) / 38.0°‐ 6.8° (H) / 21.3°‐ 3.9° (V)
    1/2.7 type (4:3): 43.7°‐ 7.7° (D) / 34.8°‐ 6.2° (H) / 26.0°‐ 4.7° (V)
    1/3 type (4:3): 39.7°- 7.1° (D) / 31.6°- 5.7° (H) / 23.7°- 4.3° (V)
    Operating Temperature -10°C - +50°C
    Effective lens Aperture Front: 21.7mm
    Rear: 9.8mm
    Back Focal Length 9.4mm - 10.7mm
    Flange Back Length 12.5mm
    Mount CS-Mount
    Filter Size M40.5 P=0.5mm
    Dimensions 49mm x 58.2mm
    Weight 77g



    No Video available
    Computar A6Z8516CS-MP
