  • Computar A4Z2812CS-MPIR Image #1

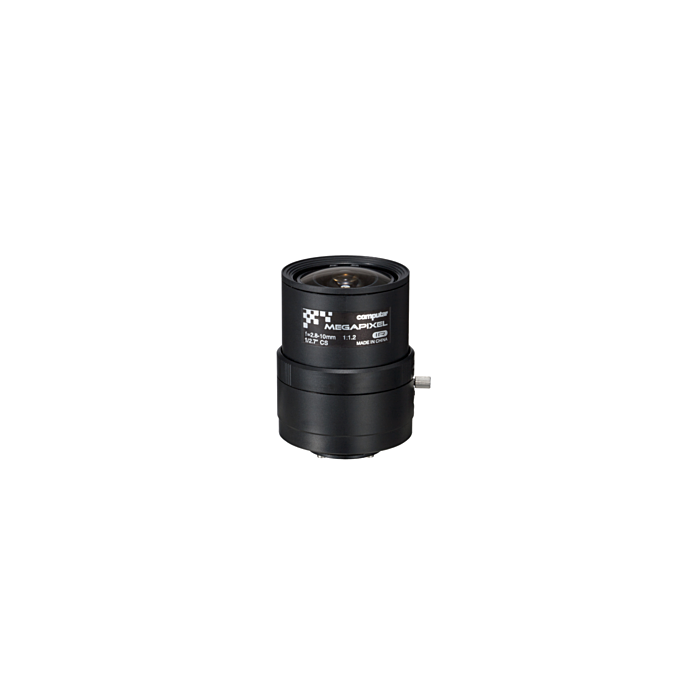

A4Z2812CS-MPIR: CBC-Computar 4X 2.8mm‐10mm F1.2 Day & Night Vari-focal lens (CS-Mount)

Quick Overview

4X 2.8mm‐10mm, F1.2, Day & Night, 1/2.7 type Megapixel Cameras.
Overview

Features:

  • 1/2.7” Format
  • 3 Megapixel
  • 2.8-10mm Varifocal
  • Full HD Format
  • Manual Iris
  • Precise Focus Adjustment
  • New Focus Lock System
  • IR Corrected Optics
  • Corner Brightness
  • DC Auto-iris and P-iris models also available
  • Specifications
    Focal Length 2.8mm - 10mm
    Max. Aperture Ratio 1:1.2
    Max. Image Format 3.2mm x 5.8mm
    Operation Range Iris: F1.2 - F16C
    Focus: 0.5m - Inf.
    Zoom: 2.8mm - 10mm
    Control Iris: Manual
    Focus: Manual
    Zoom: Manual
    Angle of View 1/2.7 type: 154.0°‐ 39.0° (D) / 127.6°‐ 34.3° (H) / 65.0°‐ 18.9° (V)
    1/3 type: 133.5°‐ 35.5° (D) / 101.3°‐ 28.4° (H) /  73.7°‐ 21.3° (V)
    1/4 type: 94.1°- 26.6° (D) / 73.7°- 21.3° (H) / 54.4°- 16.0° (V)
    Operating Temperature -10°C - +50°C
    Effective lens Aperture Front: 27.0mm
    Rear: 9.7mm
    Back Focal Length Tele: 7.3mm
    Wide: 7.3mm
    Flange Back Length 12.5mm
    Mount CS-Mount
    Filter Size -
    Dimensions 43.6mm x 59mm
    Weight 63g
