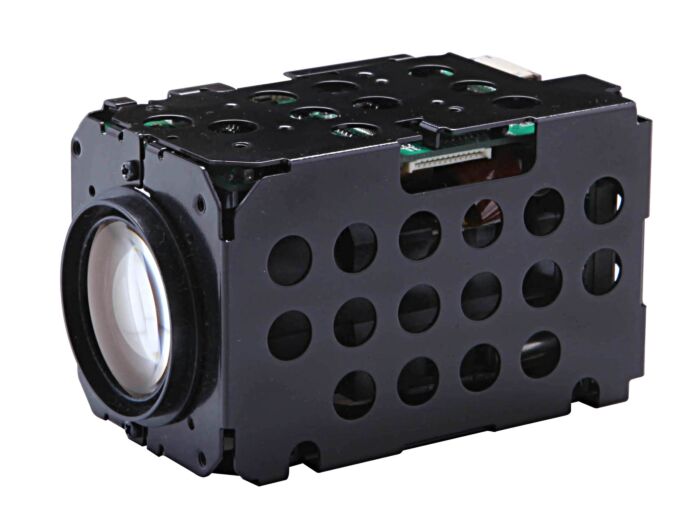

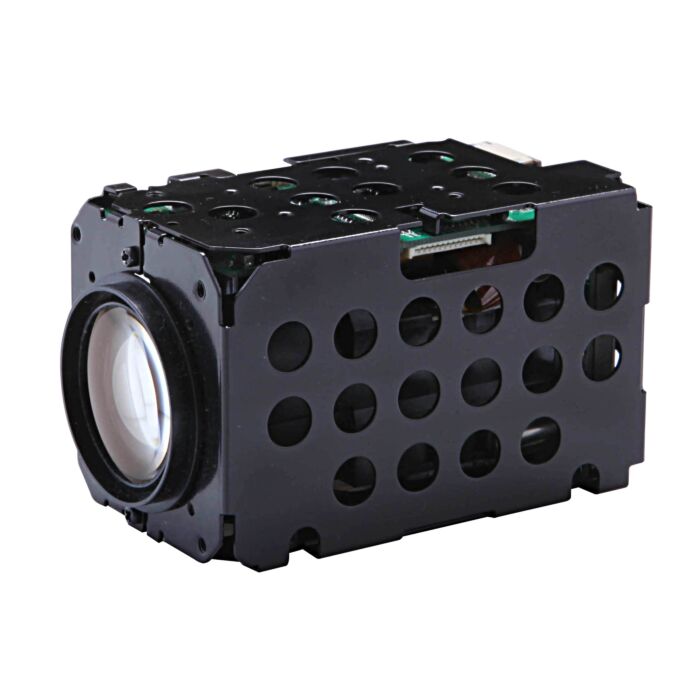

CNB ZCN-20Z27F 27x Zoom Color Block Camera

Quick Overview

768 pixels x 494p, 1/4" IT CCD, 27x zoom, Block Camera. Available in Color

Video Output: 1.0Vp-p (75Ω, Composite)
Min Illumination: Day Mode: 0.5Lux (30 IRE), Night Mode: 0.1Lux (30 IRE) / DSS (128FLD), Mode: 0.0005Lux (30 IRE)

Availability: In stock

More Views

Additional Information

Overview

Features

  • 1/4 inch IT CCD
  • High Resolution : 580 TV Lines
  • Built-in Auto Iris / Auto Focus
  • 27x Optical Power Zoom Lens
  • 10x Digital Zoom (Max. 270x)
  • TDN(ICR), Digital Slow Shutter (DSS)
  • 3D-DNR, OSD
  • Privacy Zone, Motion Detection, D-Effect
  • RS-232 TTL Interface
  • 12VDC
Specifications
Signal System NTSC
Scanning System 2:1 Interlace
Scanning Frequency(H) 15.734kHz
Scanning Frequency(V) 59.94Hz
Image Sensor 1/4" IT CCD
Sync. System Internal / External (Line Lock) : Auto Detect
Total Pixels Number 811(H) x 508(V) 410K
Effective Pixels Number 768(H) x 494(V) 380K
Horizontal Resolution 580 TV Lines (BW 600 TV Lines)
Video Output Level 1.0Vp-p (75Ω, Composite)
S/N Ratio More than 50dB (AGC Off)
Digital Zoom Ratio 10x
Lens 27x Zoom Video AF (f=3.6~97.2mm, F1.6(W)-F3.7(T))
Min. Illumination Day Mode: 0.5Lux (30 IRE) /
Night Mode: 0.1Lux (30 IRE) / DSS (128FLD)
Mode: 0.0005Lux (30 IRE)
Day & Night System Electronic Sensitivity-up (DSS), ICR(AGC type)
White Balance Auto
AGC On/Off
SBLC Zone Selectable
Digital Slow Shutter Off/2FLD~128FLD Mode
OSD Menu English, Chinese
3D-DNR Low/ Middle/ High
Mirror Function Horizontal
Privacy Zone On/Off (4 Programmable Zone)
Focus Mode Auto/Manual
Motion detection On/Off (4 Zones)
Electronic Shutter Speed 1/60 ~ 1/10,000 sec
Control RS-232 (TTL)
Power Voltage DC 12V (±10%)
Power Consumption Max. 4.8W/400mA
Dimensions 48(W) x 51.5(H) x 81.6(D) mm
Weight (Net) Approx. 205g
Product Videos No
Accessories N/A
