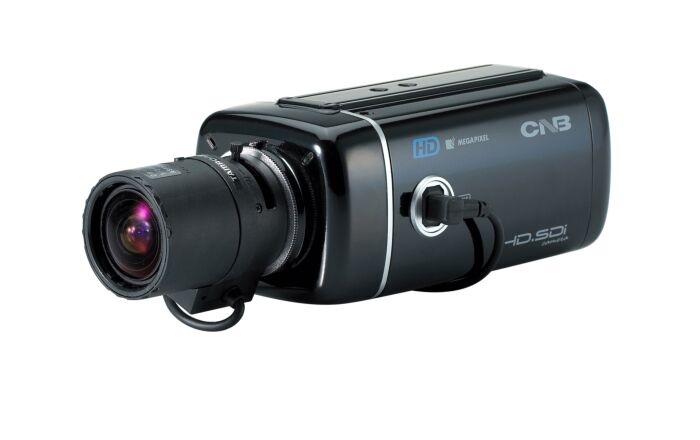

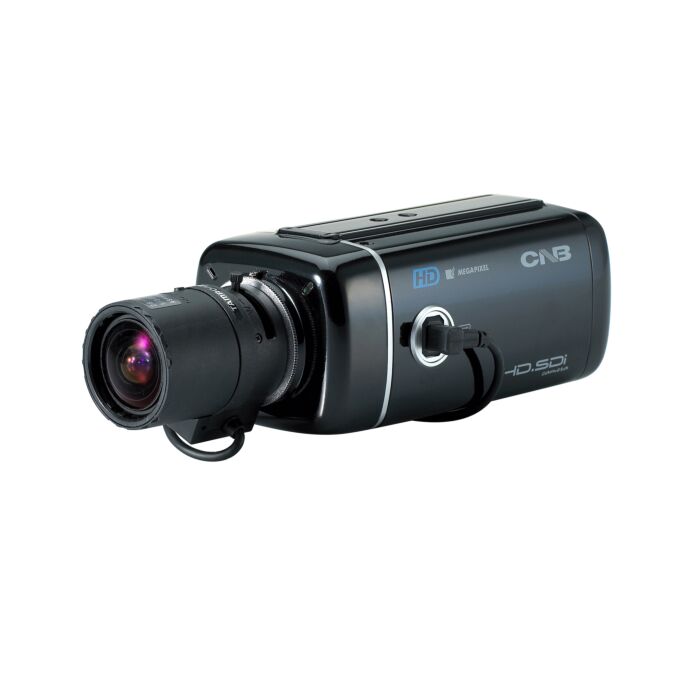

CNB HGP-2030F High Definition Mega Pixels HD-SDI Camera

Quick Overview

High Definition Mega Pixels HD-SDI Camera

Availability: In stock

More Views

CNB HGP-2030F High Definition Mega Pixels HD-SDI Camera.

  • Model: /c/n/cnb-hgp-2030f_1.jpg

Additional Information

Overview

Features :

  • High Definition Mega Pixels HD-SDI Camera.
  • 1/3" Progressive scan CMOS Sensor.
  • Max. 1280(H) x 720(V) 1.3 Mega Pixels.
  • TDN(ICR), DSS, OSD.
  • Excellent low light sensitivity (0.05Lux,, B/W).
  • 3D-DNR, BLC, Digital Zoom (Max. 20x).
  • Motion Detection, Privacy Zone, Mirror Function.
  • 1.3 Mega-Pixels real time with coaxial cable.
  • Non Compression digital streaming up to 1.5Gbps.
  • 1CH audio support.
  • 1CH CVBS output support.
  • RS-485 (Pelco-D) Protocol.
Specifications
Optional Accessory
CNB-DV04HD 4 Channel HD DVR System






Signal System Progressive image processing
Scanning System 4:3 Progressive
Image Sensor 1/3" Progressive CMOS Sensor
Sync. System Internal
Effective Pixels 1280 (H) x 1024 (V) 1.3 Mega
Horizontal Resolution 800 TVL(4:3 Chart/SXGA Mode), 700TVL(16:9 Chart/720P Mode)
Video Output Level Digital output HD-SDI
Select NTSC/PAL 1.0Vp-p (BNC 75Ω, composite)
Lens Mount CS Mount Mega-pixels Lens, DC Iris (Recommend Lens), Manual Iris
Day & Night System ICR(AGC Type)
Min. Illumination 0.5Lux (Color), 0.1Lux (B/W), 0.05Lux(DSS On), F1.2, 30IRE
Back Light Compensation On/Off
Flickerless On/Off
White Balance Auto (1900K ~ 12000K) / Manual
Exposure Auto/Manual
Functions B/W, Privacy Mask, Image Mirror, 3D-DNR
Electronic Shutter Speed NTSC: 1/2 ~ 1/48000
PAL: 1/2 ~ 1/50000
SDI
HD Format 1280 x 720P @50, 60 / YCbCr 4:2:2 16bit 74.25MHz
SDI Output SMPTE 292M (1.485Gbps) : 1280x720P @50,60
800mVp-p, 75Ω, unbalanced generator (single-ended)
CVBS
NTSC/PAL 1CH Video BNC Out, Analog Composite(1V±0.2Vp-p)
Video / Audio
Input (Selectable) Line level Audio (1Vrms) 1ea, Microphone (Built-in) 1ea
Digital Interface 16, 20, 24 bit audio format, 48KHz
Gain 12 ~ -34.5dB(Line in)
Control Interface
RS-485 PELCO-D (2400~38400bps)
Mechanical
Dimensions 71 (W) x 65 (H) x 143.9(D)mm
Operating Temperature -10˚C ~ 50 ˚C
Power DC12V / Max. 3W
