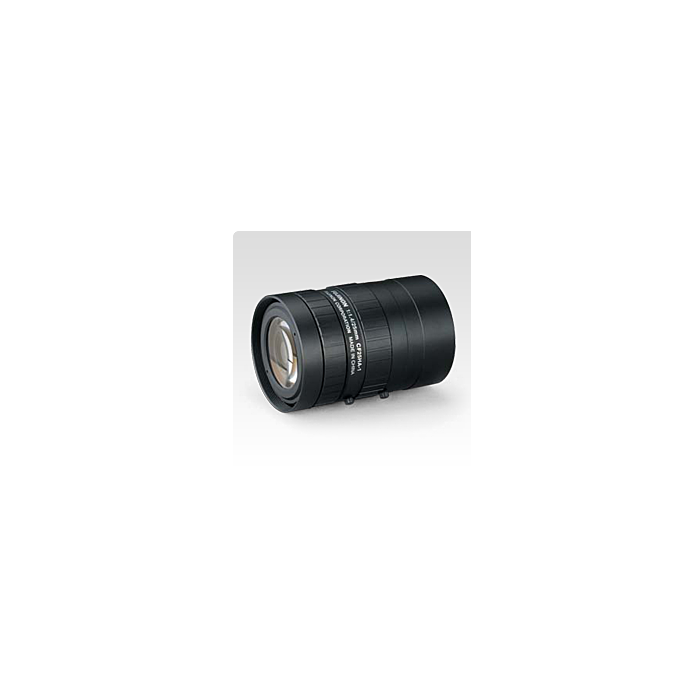

CF25HA-1 (CF25HA1): Fujinon 1" 25mm 1.5 Megapixel Lens (C-Mount)

CF25HA-1 is a 1" 25mm Industrial Manual Lens for C-Mount Machine Vision Cameras and industrial applications.
SKU
CF25HA-1

CF25HA-1 has a low-distortion design achieving accurate image input.



Features:



  • Format: 1"
  • Focal Length: 25mm
  • Aperture: F1.4
  • Iris Type: Manual Iris
  • Mount: C-Mount
  •


    Applications:



  • Machine Vision
  • Industrial Inspection
  • Focal Length 25mm
    Iris Range F1.4-F22
    Angle of View
    29.9° x 22.7°(1")
    Focus range (from front of the lens) (mm) ∞-100
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread M49x0.75
     TV Distortion (%) 0.36
    Mount C-Mount
    Sensor Size (max.) 1"
    Weight 310g
