TEC-V10110MPW (TECV10110MPW): CBC-Computar V-Series 5MP, 1" 110.2mm, Telecentric Lens, 1.0x magnification (C Mount)

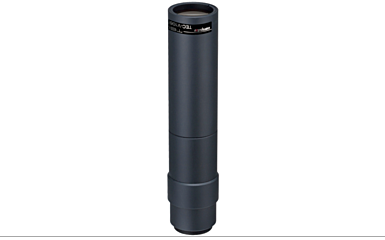

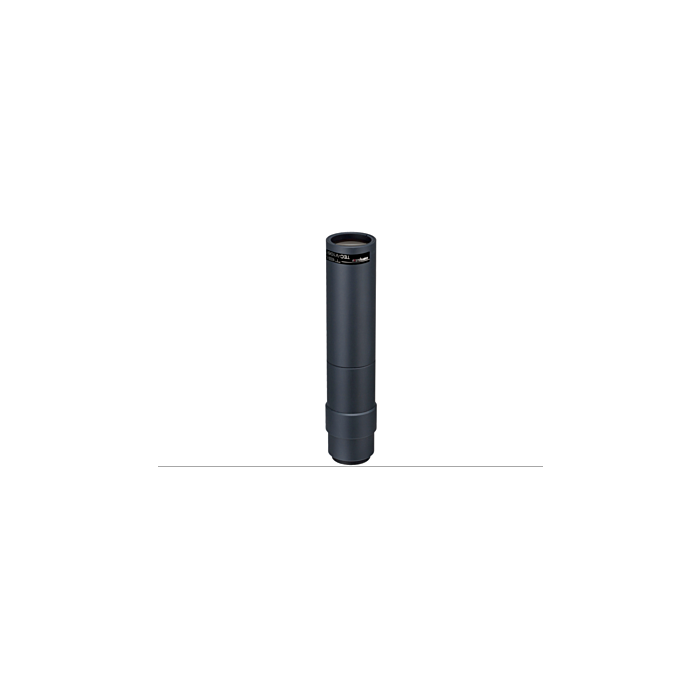

Computar TEC-V10110MPW 2.3" 1" Telecentric C-Mount Lens
SKU
TEC-V10110MPW

The TEC-V10110MPW is Compatible with 5MP sensors on 1 " cameras.



Features:



  • Compatible with 5MP sensors on 1 " cameras
  • Designed for 110.2mm working distance
  • 1.0x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.02s%)
  •


    Applications:



  • Industrial Imaging
  • Industrial Inspection
  • Machine Vision
  • Model TEC-V10110MPW
    Magnification 1.0x
    Working Distance 110.2mm
    Effective F Number 9.0
    Max. Image Format φ16mm
    Field of View 12.8mm(H) x 9.6mm(V) 1"
    Resolving Power *1 6.0µm
    Depth of Field *2 0.72mm
    TV Distortion 2/3" Type 0.015%
    Back Focal Length 17.0mm
    Flange Back Length 17.526mm
    Mount C
    Dimensions φ35mm x 142.9mm
    Weight 159g
    Operating Temp -10℃ - +50℃
