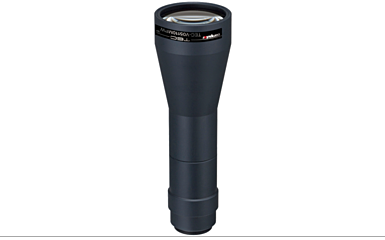

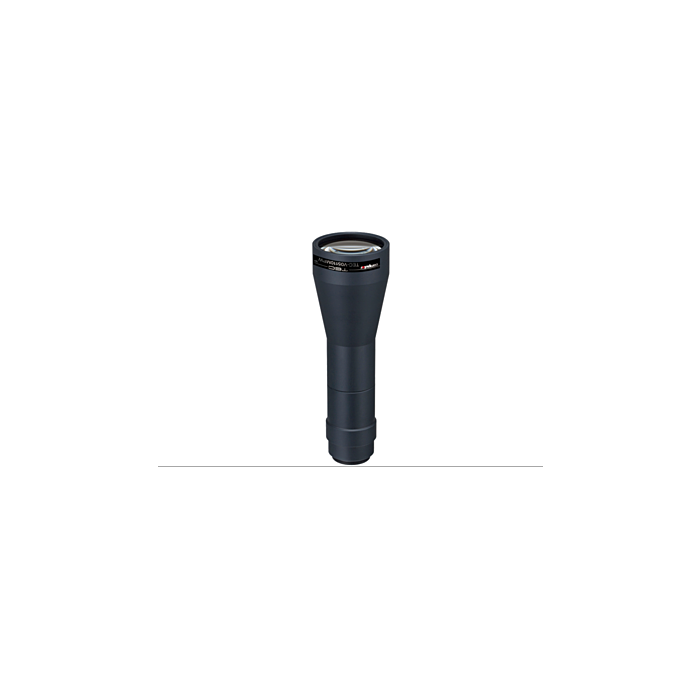

TEC-V05110MPW (TECV05110MPW): CBC-Computar V-Series 5MP, 1" 110.2mm, Telecentric Lens, 0.5x magnification (C Mount)

The TEC-V05110MPW is a Telecentric lens for detectors up to 1" for 5 MegaPixel Magnification 0,5 Working Distance 110,2mm.
SKU
TEC-V05110MPW

Computar TEC-V05110MPW V-Series Compatible with 5MP sensors on 1 " cameras Designed for 110.2mm working distance 0.5x.



Features:



  • Compatible with 5MP sensors on 1 " cameras
  • Designed for 110.2mm working distance
  • 0.5x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.02s%)
  •


    Applications:



  • Industrial Inspection
  • Industrial Imaging
  • Machine Vision
  • Model TEC-V05110MPW
    Magnification 0.5x
    Working Distance 110.2mm
    Effective F Number 9.0
    Max. Image Format φ16mm
    Field of View 25.6mm(H) x 19.2mm(V) 1"
    Resolving Power *1 12.0µm
    Depth of Field *2 2.88mm
    TV Distortion 2/3" Type 0.012%
    Back Focal Length 17.0mm
    Flange Back Length 17.526mm
    Mount C
    Dimensions φ48mm x 142.8mm
    Weight 197g
    Operating Temperature -10℃ - +50℃
