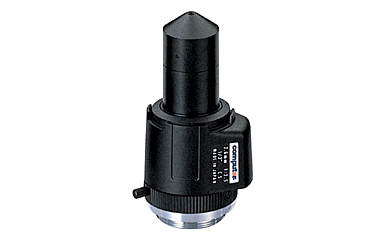

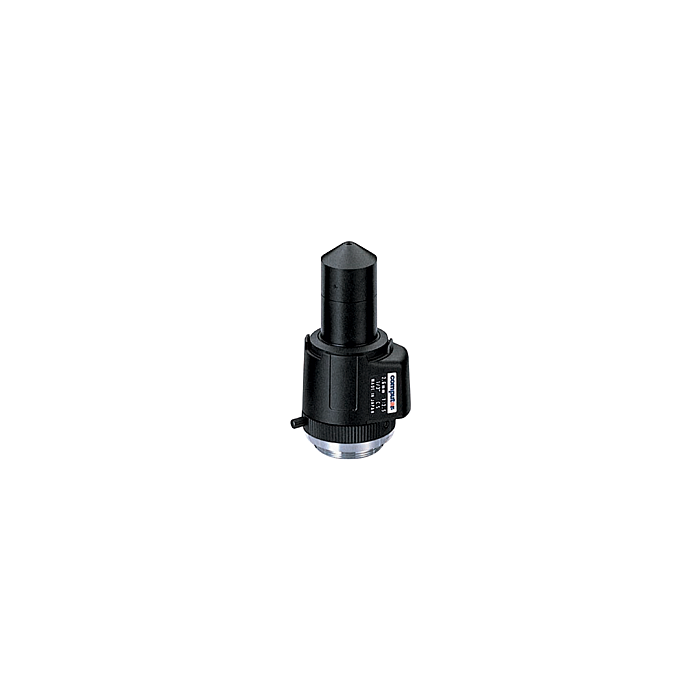

CBC-Computar TG2625FCSL-P (TG2625FCSLP) 1/3" 2.6mm f2.5 Pinhole, DC Auto Iris Lens ( CS-Mount)

Used on a 1/3-inch camera, it provides a wide angle 83.2 degree horizontal field of view.
SKU
CBC-Computar TG2625FCSL-P

Pinhole lenses are designed to be concealed behind a wall, ceiling or other surface for covert surveillance applications, with the tip of the lens protruding through an 1/8-inch diameter hole.



Features:



  • For 1/3-inch format cameras
  • CS-mount lens
  • Focal Length: 2.6mm
  • Iris Range: F2.5
  • Max. Aperture Ratio: 1:2.5
  • Down Angle View: 96.0 degrees
  •


    Applications:



  • Covert Surveillance
  • Security
  • Model TG2625FCS-P
    Focal Length 2.6mm
    Max. Aperture Ratio 1:2.5
    Max. Image Format 4.8mm x 3.6mm(6mm)
    Operation Range Iris F2.5 - F360C   Focus 0.2m - Inf
    Control DC Auto Iris  Fi=ouc Manual
    Object Dimension at M.O.D. 35.5cm x 26.7cm
    Coil Drive 190     Control   855
    Operating Temp 20C - 50C
