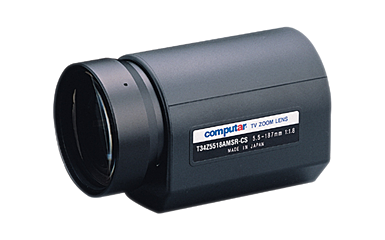

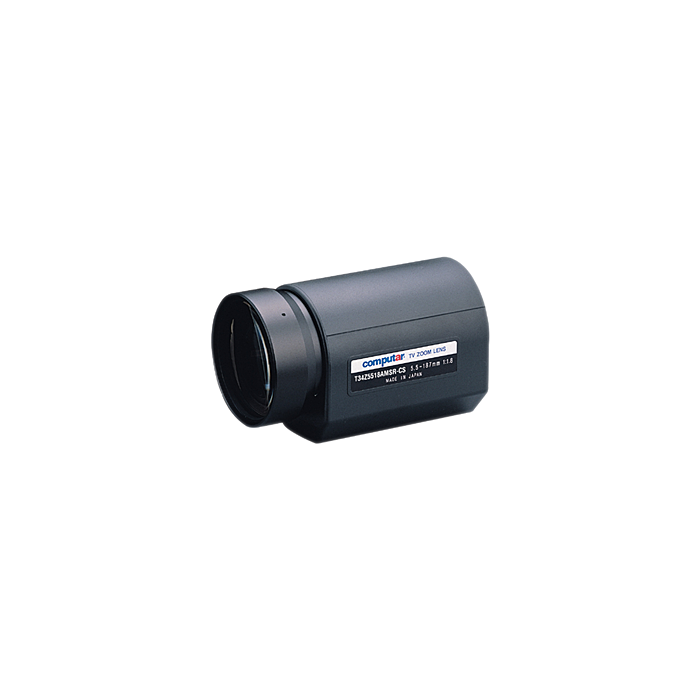

T34Z5518AMSR: CBC Computar 1/3" 5.5-187mm f1.8 34X Motorized Zoom, Video Auto Iris w/spot & man. Override (CS Mount)

Computar T34Z5518AMSR is a 5.5-187mm (34X optical) motorized zoom lens featuring 1/3-inch lens format, CS lens mount, video auto iris, F1.8 aperture.
SKU
T34Z5518AMSR

T34Z5518AMSR is our most economical varifocal and is typically used for general purpose security applications.



Features:



  • Format: 1/3"
  • Focal Length: 5.5-187mm
  • Aperture: F1.8
  • Iris Type: Video Auto-Iris
  • Mount: CS-Mount
  •


    Applications:



  • Security
  • Surveillance
  • Model

    T34Z5518AMSR

    Focal Length 5.5mm - 187mm
    Max. Aperature 1:1.8
    Max Image Format 4.8mm x 3.6mm(6mm)
    Operation Range Iris=F1.8 - F560C  Focus=1.5m - Inf.  Zoom=5.8mm - 187mm
    Control Motorized/Preset  Focus, Zoom    Video Auto Iris
    Supply Voltage DC8.5V -DC16V
    Effective Lens Aperature Front 70.0mm    Rear 9.1mm
    Back Focal Length 12.7mm
    Flange Back Length 12.5mm
    Mount CS-Mount
    Filter Size M77 P0.75mm
    Dimensions W82mm x H97.4mm x D160mm
    Weight 1150g
