  • T10Z5712AMSP Image #1

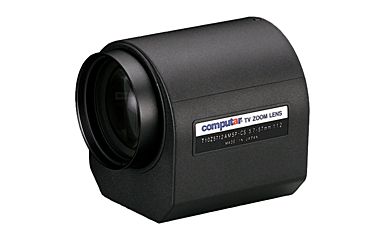

T10Z5712AMSP: CBC Computar 1/3" 5.7-57mm f1.2 10X Motorized Zoom, Video Auto Iris w/spot & preset (CS Mount)

Quick Overview

The Computar T10Z5712AMSP is a 5.7-57mm (10X optical) motorized zoom lens featuring 1/3-inch lens format and a CS-Mount.
Overview

T10Z0513CS is an all purpose varifocal with a 10X zoom ratio suitable for a wide range of viewing angles including long distance surveillance.



Features:



  • Format: 1/3"
  • Focal Length: 5.7-57mm
  • Aperture: F1.2
  • Iris Type: Motorized Video Auto-iris
  •


    Applications:



  • Security
  • Surveillance
  • ITS
  • Specifications
    Model

    T10Z5712AMSP-CS

    Focal Length 5.7mm - 57mm
    Max. Aperature 1:1.2
    Max Image Format 4.8mm x 3.6mm(6mm)
    Operation Range Iris=F1.2 - F560C   Focus=1.8m - Inf  Zoom=5.7mm -57mm
    Control Motorized/Preset Focus, Zoom    Video Auto Iris
    Supply Voltage DC8.5V - DC16V
    Effective Lens Aperature Front 45.0mm   Rear 8.6mm
    Back Focal Length 8.5mm
    Flange Back Length 12.5mm
    Mount CS-Mount
    Filter Size M49 P0.75mm
    Dimensions W68.5mm x H76.3mm x D88mm
    Weight 510g
