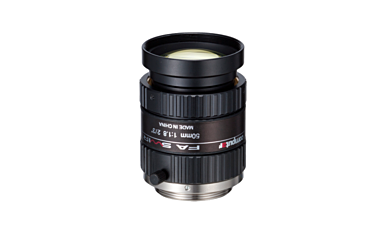

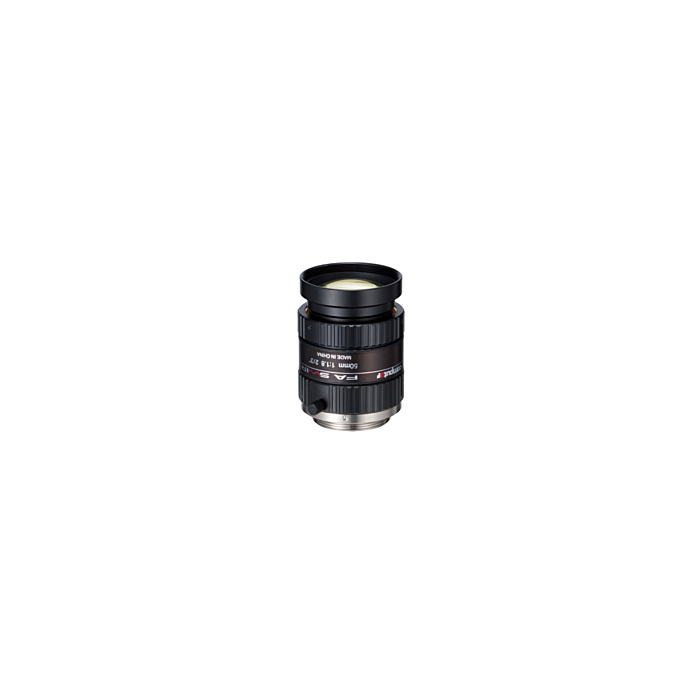

CBC-Computar SWIR M5018-SW (M5018SW) 2/3" 50mm, F1.8, Manual Iris Lens (C-Mount)

SWIR (Short Wave Infrared) Lenses are specifically designed for Machine Vision applications in NIR and SWIR.

$0.00 Please call for pricing

SKU

CBC-Computar SWIR M5018-SW

High-resolution, low-distortion design offers Megapixel clarity in hyperspectral applications.

Features:

Format: 2/3"

Focal Length: 50.0mm

Aperture: F1.8

Iris Type: Manual Iris

Mount: C-Mount

Applications:

Industrial Inspection

Machine Vision

Model	SWIR M5018-SW
Focal Length	50mm
Max. Aperture Ratio	1:1.8
Max. Image Circle	φ12.3mm
Operation Range	Iris F1.8‐ F16C Focus 0.6m ‐ Inf.
Control	Iris Manual Focus Manual
Object Dimension at M.O.D	2/3type 10.4cm x 7.8cm 1/2type 7.6cm x 5.7cm
Operating Temperature	-10℃ ‐ +50℃
