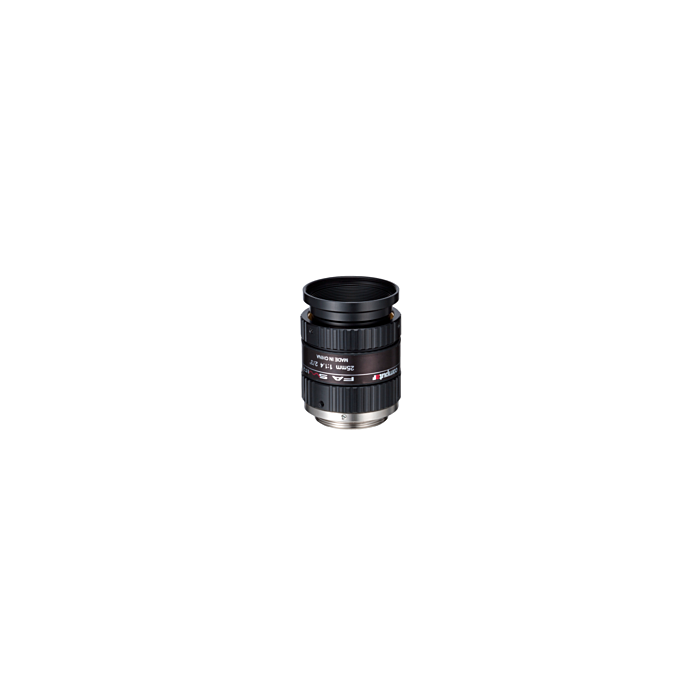

  • CBC-Computar SWIR M2514-SW Image #1

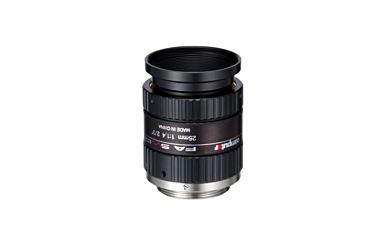

CBC-Computar SWIR M2514-SW 2/3" 25mm, F1.4, Manual Iris (C-Mount)

Quick Overview

The M2514-SW is a SWIR (Short Wave Infrared) Lens specifically designed for Machine Vision applications in NIR and SWIR.
Overview

M2514-SW 2/3" 25.0MM F1.4 Manual Iris C-Mount Lens, Megapixel Rated, SWIR Type (800-1700NM)



Features:



  • Unique coating technology delivers high transmission from 800nm-1,700nm
  • High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
  • Also available in 16mm, 35mm and 50mm
  • Designed around the popular φ12.3mm image circle format
  • The industry’s most compact form factor.  Fits in most applications
  •


    Applications:



  • Machine Vision
  • Industrial Imaging
  • Industrial Inspection
  • Specifications

    </table

    Model SWIR M2514-SW
    Focal Length 25mm
    Max. Aperture Ratio 1:1.4
    Max. Image Circle φ12.3mm
    Operation Range Iris F1.4‐ F16C    Focus 0.3m ‐ Inf.
    Control Iris Manual Focus Manual
    Object Dimension at M.O.D 2/3type 10.5cm x 7.8cm 1/2type 7.6cm x 5.7cm
    Operating Temperature -10℃ ‐ +50℃
