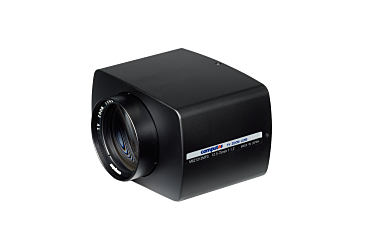

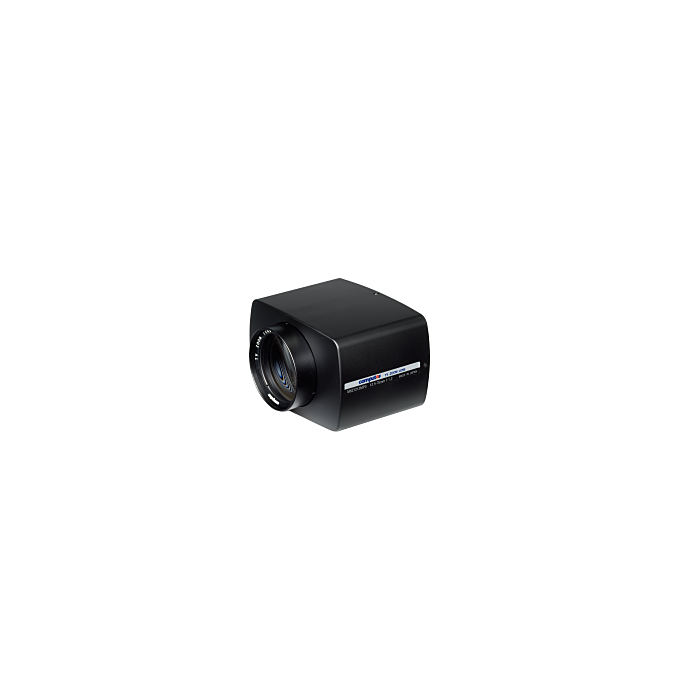

  • M6Z1212MP3 Image #1

M6Z1212MP3: CBC-Computar 2/3" 12.5-75mm f1.2 6X Motorized Zoom, 3 motors (C Mount) w/ Preset

Quick Overview

Computar's M6Z1212MP3 is a 12.5-75mm fj.2 6X, 3 motors, with preset for zoom-focus-iris.
Overview

M6Z1212MP3-Motorized Zoom, 2/3" Format, C Mount, 12.5-75mm fj.2 6X, 3 motors, w/preset for zoom-focus-iris.



Features:



  • 6X Motorized Zoom Lens
  • 12.5-75mm
  • F1.2
  • Motorized Zoom, Focus and Iris
  • Preset Zoom, Focus and Iris
  • 2/3" Format, C-Mount
  •


    Applications:



  • Surveillance
  • Security
  • Observation
  • Specifications
    Model M6Z1212MP3
    Focal Length 12.5mm-75mm
    Max. Aperature 1:1.2
    Max Image Format 8.8mm x 6.6mm(φ11mm)
    Operation Range Iris=F1.2 ‐ F16C Focus=1m ‐ lnf  Zoom=12.5mm ‐ 75mm
    Control Motorized, Preset Iris, Focus, Zoom
    Supply Voltage DC8V
    Effective Lens Aperature Front φ46.5mm     Rear φ15.6mm
    Back Focal Length 15.4mm
    Flange Back Length 17.526mm
    Mount C-Mount
    Filter Size M55 P=0.75mm
    Dimensions 108mm x 71mm x 114.5mm
    Weight 750g
