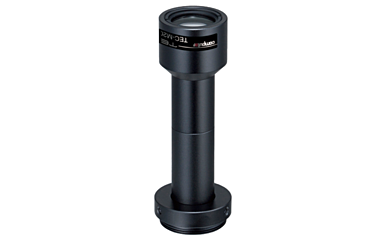

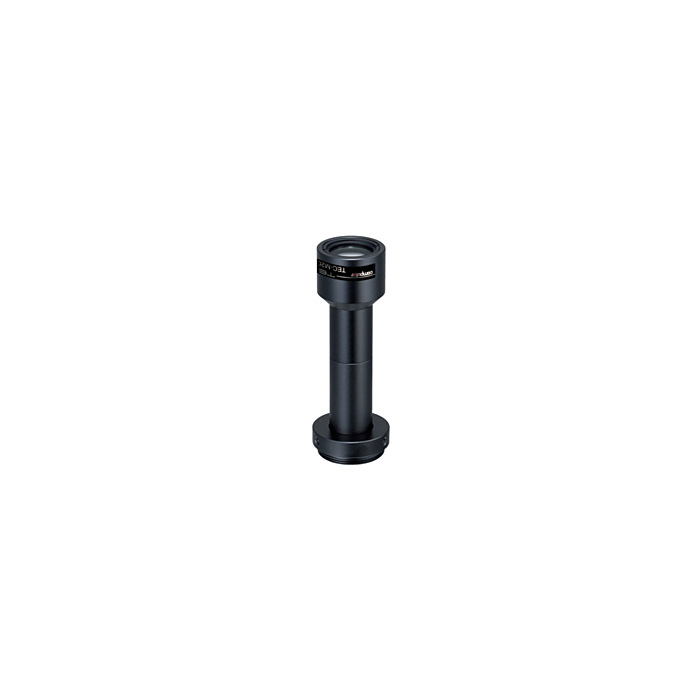

TEC-M2065MP Image #1

TEC-M2065MP (TECM2065MP): CBC-Computar M-Series 2MP, 2/3" 65.4mm, Telecentric Lens, 2x magnification (C Mount)

TEC-V05110MPW Image #1

TEC-V05110MPW (TECV05110MPW): CBC-Computar V-Series 5MP, 1" 110.2mm, Telecentric Lens, 0.5x magnification (C Mount)

TEC-M2065MPC (TECM2065MPC): CBC-Computar M-Series 2MP, 2/3" 65.4mm, Telecentric Lens, 2x magnification (C Mount)

TEC-M2065MPC Computar is a 2/3 C-Mount 65mm 2 Megapixel Telecentric Lens (Monofocal Lenses).
SKU
TEC-M2065MPC

The TEC-M2065MPC from Computar is a 2/3" 65.4mm fixed lens, C-mount. Features. Compatible with 2MP sensors on 2/3 " cameras.



Features:



  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 65.4mm working distance
  • 2x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  • Coaxial lighting capability
  •


    Applications:



  • Industrial Inspection
  • Industrial Imaging
  • Machine Vision
  • Model TEC-M2065MPC
    Magnification 2.0x
    Working Distance 64.5mm
    Effective F Number 12.8
    Max. Image Format φ11mm
    Field of View 4.4mm(H) x 3.3mm(V) 2/3"
    Resolving Power *1 4.4µm
    Depth of Field *2 0.26mm
    TV Distortion 2/3" Type 0.02%
    Back Focal Length 17.0mm
    Flange Back Length 17.526mm
    Mount C
    Dimensions φ25mm x 77.4mm
    Weight 55g
    Operating Temperature -10℃ - +50℃
