  • TEC-M2065MP Image #1

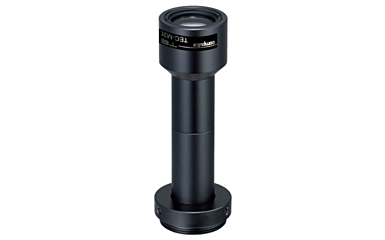

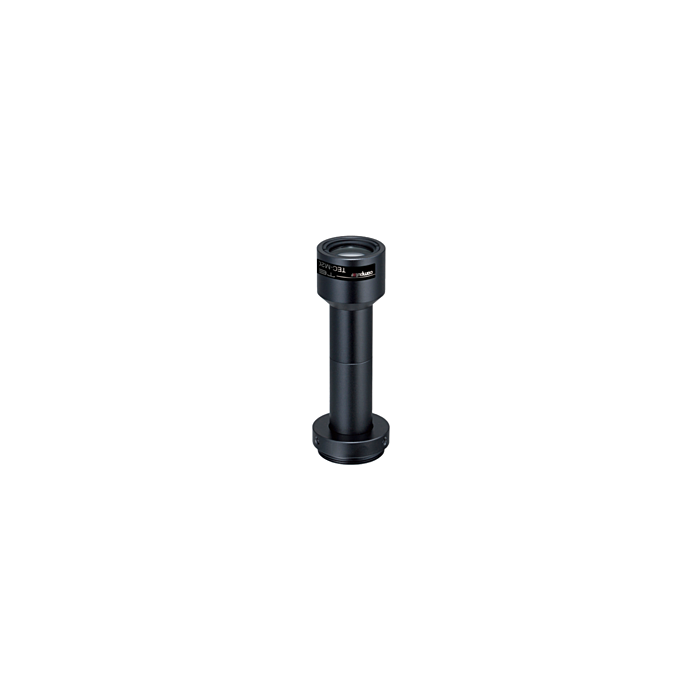

TEC-M2065MP: CBC-Computar M-Series 2MP, 2/3" 65.4mm, Telecentric Lens, 2x magnification (C Mount)

Quick Overview

The Computar model TEC-M2065MP provides 2.0X Magnification at 65.4mm Working Distance for megapixel machine vision cameras.
Overview

Compatible with 2MP sensors on 2/3 " cameras Designed for 65.4mm working distance 2x magnification.



Features:



  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 65.4mm working distance
  • 2x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  •


    Applications:



  • Industrial Inspection
  • Industrial Imaging
  • Machine Vision
  • Specifications
    Model TEC-M2065MP
    Magnification 2.0x
    Working Distance 64.5mm
    Effective F Number 12.8
    Max. Image Format φ11mm
    Field of View 4.4mm(H) x 3.3mm(V) 2/3"
    Resolving Power *1 4.4µm
    Depth of Field *2 0.26mm
    TV Distortion 2/3" Type 0.02%
    Back Focal Length 17.00mm
    Flange Back Length 17.526mm
    Mount C
    Dimensions φ25mm x 77.4mm
    Weight 49g
    Operating Temp. -10℃ - +50℃
