  • CBC-Computar M-Series TEC-M20110MPC  Image #1

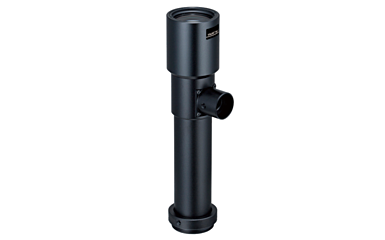

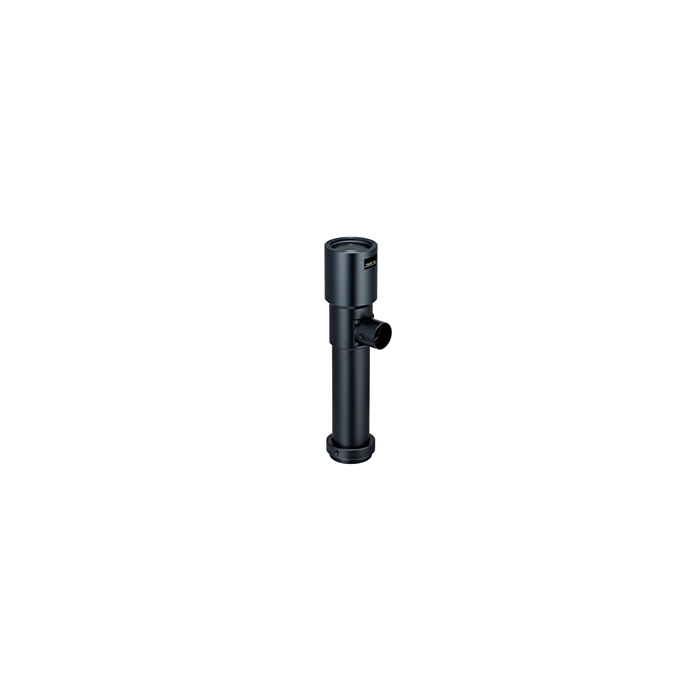

CBC-Computar M-Series TEC-M20110MPC 2MP, 2/3" 110.9mm, Telecentric Lens (C-Mount)

Quick Overview

2.0x 2 Megapixel Telecentric Lens with Coaxial Lighting Port in C-Mount for 2/3" Sensors (4.37" Working Distance)
Overview

Telecentric lens for detectors up to 2/3" for 2 MegaPixel Magnification 2,0 Working Distance 110,9mm Coaxial model.



Features:



  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 110.9mm working distance
  • 2x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  • Coaxial lighting capability
  •


    Applications:



  • Industrial Imaging
  • Industrial Inspection
  • Machine Vision
  • Specifications
    Model  TEC-M20110MPC
    Field of View 4.4mm(H) x 3.3mm(V) 2/3"
    Field Of View 1/3" 2.4mm x 1.8mm
    Field Of View 1/2" 3.2mm x 2.4mm
    Field Of View 1/1.8"  3.59mm x 2.66mm
    Field Of View 2/3"  4.4mm x 3.3mm
    Working Distance 110.9mm
    Working F-number 13.0
    Max. Image Format φ11mm
    Dimensions φ30mm x 126.4mm
