  • TEC-M15110MP  Image #1

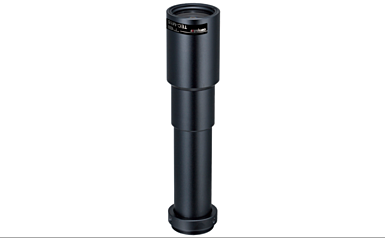

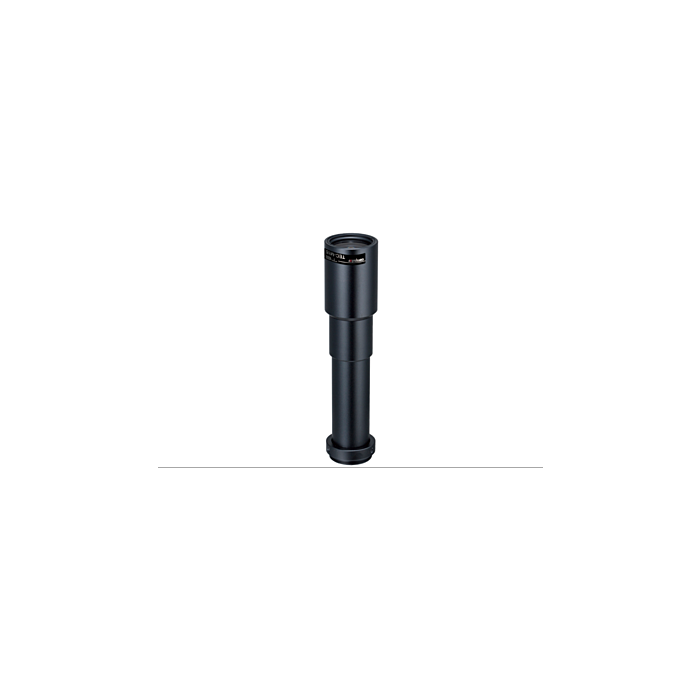

TEC-M15110MP: CBC-Computar M-Series 2MP, 2/3" 110.7mm, Telecentric Lens, 1.5x magnification (C Mount)

Quick Overview

The TEC-M15110MP is a 1.5x, 2 Megapixel Telecentric Lens in C-Mount for 2/3" Sensors with a 4.36" Working Distance.
Overview

Computar TEC-M15110MP 2/3 110mm Fixed Lens, C-Mount



Features:



  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 110.7mm working distance
  • 1.5x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  •


    Applications:



  • Industrial Imaging
  • Industrial Inspection
  • Machine Vision
  • Specifications
    Model TEC-M15110MP
    Magnification 1.5x
    Working Distance 110.7mm
    Effective F Number 11.5
    Max. Image Format φ11mm
    Foeld of View 5.87mm(H) x 4.4mm(V) 2/3"
    Resolving Power *1 5.2µm
    Depth of Field *2 0.42mm
    TV Distortion 2/3" Type 0.031%
    Back Focal Length 17.0mm
    Flange Back Length 17.526mm
    Mount C
    Dimensions φ30mm x 128mm
    Weight 108g
    Operating Temp. -10℃ - +50℃
