TEC-M1065MPC (TECM1065MPC): CBC-Computar M-Series 2MP, 2/3" 65.5mm, Telecentric Lens, 1x magnification (C Mount)

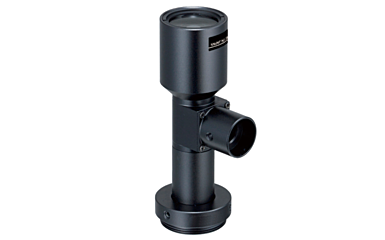

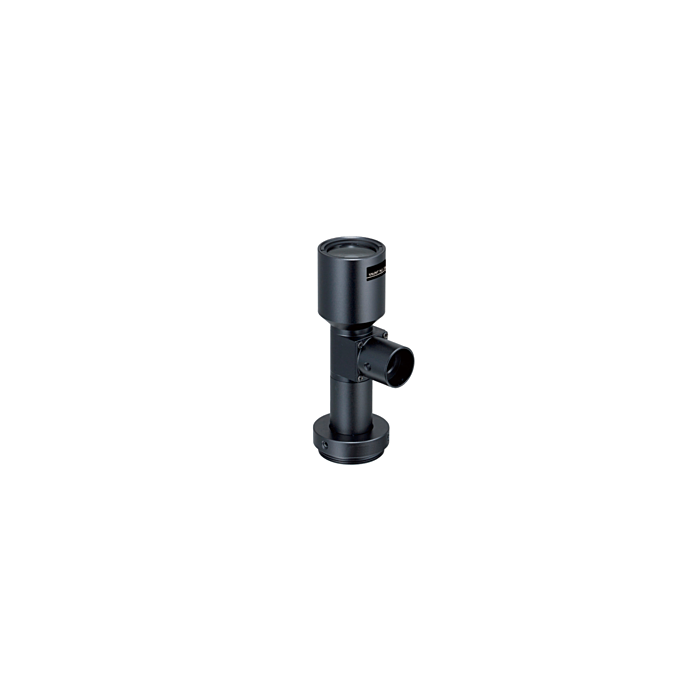

Computar TEC-M1065MPC 2.3" Telecentric C-Mount Lens
SKU
TEC-M1065MPC

The TEC-M1065MPC from Computar is a 2/3" 65mm fixed fens, C-mount



Features:



  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 65.5mm working distance
  • 1x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  • Coaxial lighting capability
  •


    Applications:





  • Industrial Imaging
  • Industrial Inspection
  • Machine Vision
  • Model TEC-M1065MPC
    Magnification 1.0x
    Working Distance 65.5mm
    Effective F Number 9.8
    Max. Image Format φ11mm
    Field of View 8.8mm(H) x 6.6mm(V) 2/3"
    Resolving Power *1 6.7µm
    Depth of Field *2 0.79mm
    TV Distortion 2/3" Type -0.022%
    Back Focal Length 17.00mm
    Flange Back Length 17.526mm
    Mount  C
    Dimensions φ25mm x 78mm
    Weight 54g
    Operating Temperature -10℃ - +50℃
