  • TEC-M10110MPC Image #1

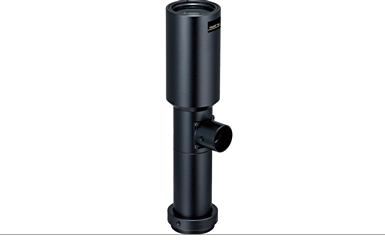

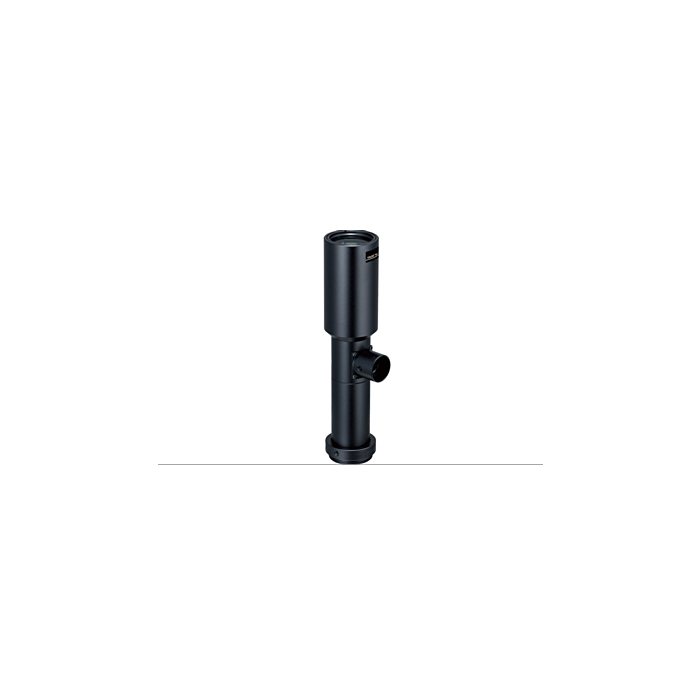

TEC-M10110MPC: CBC-Computar M-Series 2MP, 2/3" 111.5mm, Telecentric Lens, 1x magnification (C Mount)

Quick Overview

The TEC-15110MPC is a 1.0x, 2MP Telecentric Lens in C-Mount for 2/3" Sensors from Computar is designed for machine vision applications.
Overview

The TEC-M10110MPC from Computar is a 2/3" 110mm fixed fens, C-mount. Features. Compatible with 2MP sensors on 2/3 " cameras.



Features:



  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 111.5mm working distance
  • 1x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  • Coaxial lighting capability
  •


    Applications:



  • Industrial Imaging
  • Industrial Inspection
  • Machine Vision
  • Specifications
    Model TEC-M10110MPC
    Magnification 1.0x
    Working Distance 111.5mm
    Effective F Number 10.1
    Max. Image Format φ11mm
    Field of View 8.8mm(H) x 6.6mm(V) 2/3"
    Resolving Power *1 6.9µm
    Depth of Field *2 0.82mm
    TV Distortion 2/3" Type -0.003%
    Back Focal Length 17.0mm
    Flange Back Length 17.526mm
    Mount C
    Dimensions φ30mm x 126.7mm
    Weight 108g
    Operating Temp -10℃ - +50℃
