  • TEC-M0865MPC Image #1

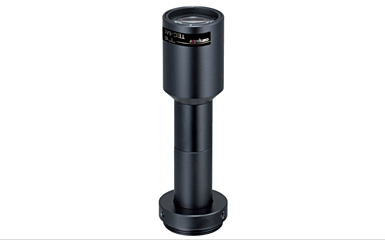

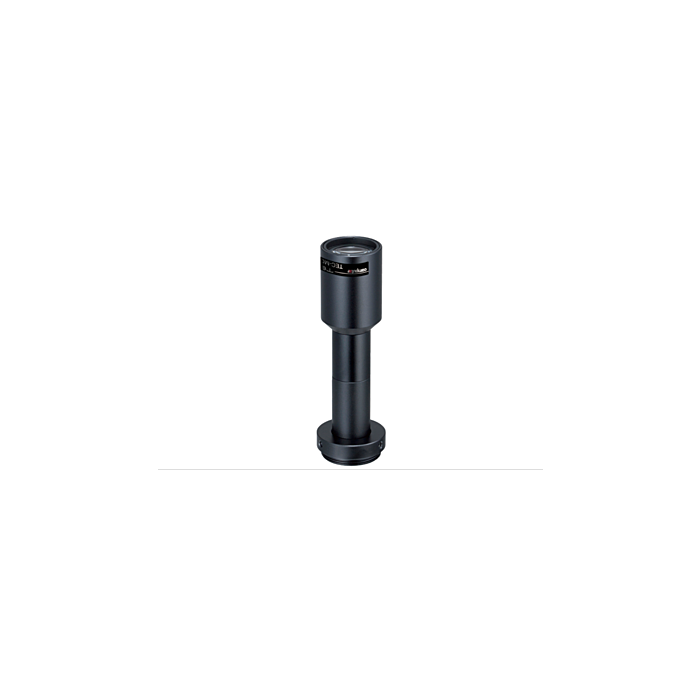

CBC-Computar M-Series TEC-M0865MPC 2MP, 2/3" 66mm, Telecentric Lens, 0.8x magnification (C Mount)

Quick Overview

TEC-M0865MPC is a 2/3" 65mm fixed lens, C-mount. Features. Compatible with 2MP sensors on 2/3 " cameras
Overview

Computar TEC-M0865MPC 2.3" Telecentric C-Mount Lens, 0.8X, WD=65mm, 2 Megapixel Rated



Features:



  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 66mm working distance
  • 0.8x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  • Coaxial lighting capability
  •


    Applications:



  • Machine Vision
  • Industrial Appications
  • Specifications
    Model TEC-M0865MPC
    Magnification 0.8x
    Working Distance 66mm
    Effective F Number 9.4
    Max. Image Format φ11mm
    Field of View 11.0mm(H) x 8.25mm(V) 2/3"
    Resolving Power *1 8.0µm
    Depth of Field *2 1.18mm
    TV Distortion 2/3" Type -0.008%
    Back Focal Length 17.0mm
    Flange Back Length 17.526mm
    Mount C
    Dimensions φ25mm x 88.2mm
    Weight 62g
    Operating Temp -10℃ - +50℃
