  • TEC-M0865MP Image #1

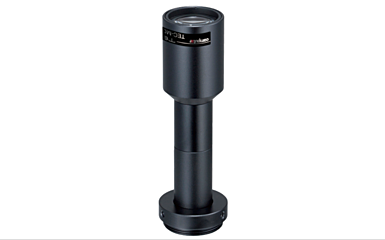

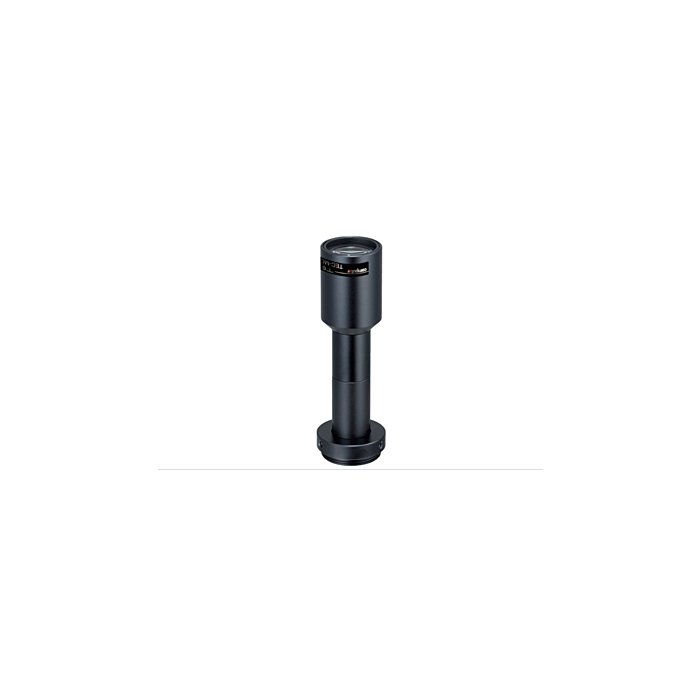

TEC-M0865MP: CBC-Computar M-Series, 2MP 2/3" 66mm, Telecentric Lens, 0.8x magnification (C Mount)

Quick Overview

The 2/3" TEC-M series offers the choice between a working distance of 65mm or 110mm. TEC-M0865MP is 65mm Telecentric Lens.
Overview

Computar's model TEC-M0865MP provides 0.8X Magnification at 66mm Working Distance for megapixel machine vision cameras.



Features:



  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 66mm working distance
  • 0.8x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  •


    Applications:



  • Industrial Inspection
  • Imaging
  • Machine Vision
  • Specifications
    Model TEC-M0865MP
    Magnification 0.8x
    Working Distance 66mm
    Effective F Number 9.4
    Max. Image Format φ11mm
    Field of View 11.0mm(H) x 8.25mm(V) 2/3"
    Resolving Power *1 8.0µm
    Depth of Field *2 1.18mm
    TV Distortion 2/3" Type -0.008%
    Back Focal Length 17.0mm
    Flange Back Length 17.526mm
    Mount C
    Dimensions φ25mm x 88.2mm
    Weight 57g
    Operating Temp -10℃ - +50℃
