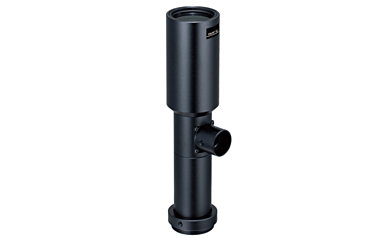

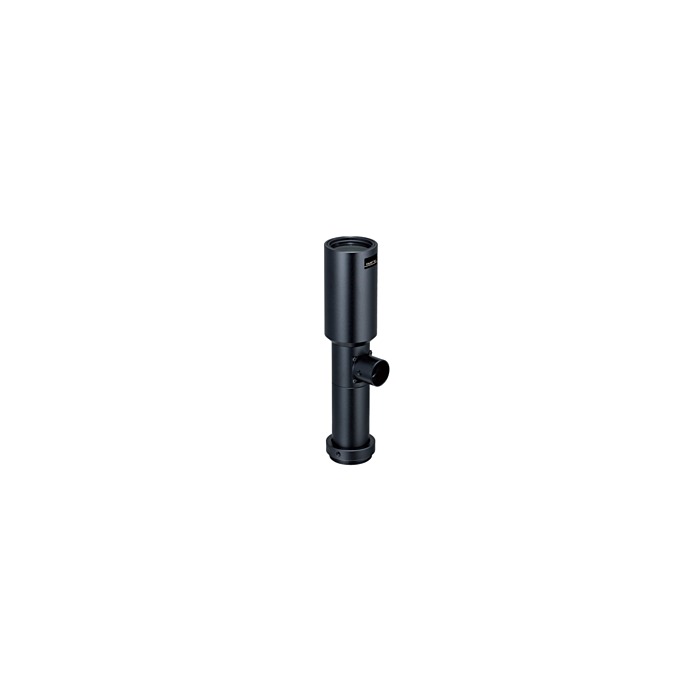

TEC-M08110MPC (TECM08110MPC): CBC-Computar M-Series 2MP, 2/3" 111mm, Telecentric Lens, 0.8x magnification (C Mount)

This 2MP Telecentric Lens for 2/3" Sensor is designed for machine vision applications.
SKU
TEC-M08110MPC

The TEC-M08110MPC from Computar is a 2/3" 110mm fixed Lens, C-mount.



Features:



  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 111mm working distance
  • 0.8x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  • Coaxial lighting capability
  •


    Applications:



  • Industrial Applications
  • Industrial Inspection
  • Machine Vision
  • Model TEC-M0811MPC
    Magnification 0.8x
    Working Distance 111mm
    Effective F Number 10.2
    Max. Image Format φ11mm
    Field of View 11.0mm(H) x 8.25mm(V) 2/3"
    Resolving Power *1 8.8µm
    Depth of Field *2 1.31mm
    TV Distortion 2/3" Type -0.027%
    Back Focal Length 17.0mm
    Flange Back Length 17.526mm
    Mount C
    Dimensions φ30mm x 126.1mm
    Weight 106g
    Operating Temp -10℃ - +50℃
