  • TEC-M05110MP  Image #1

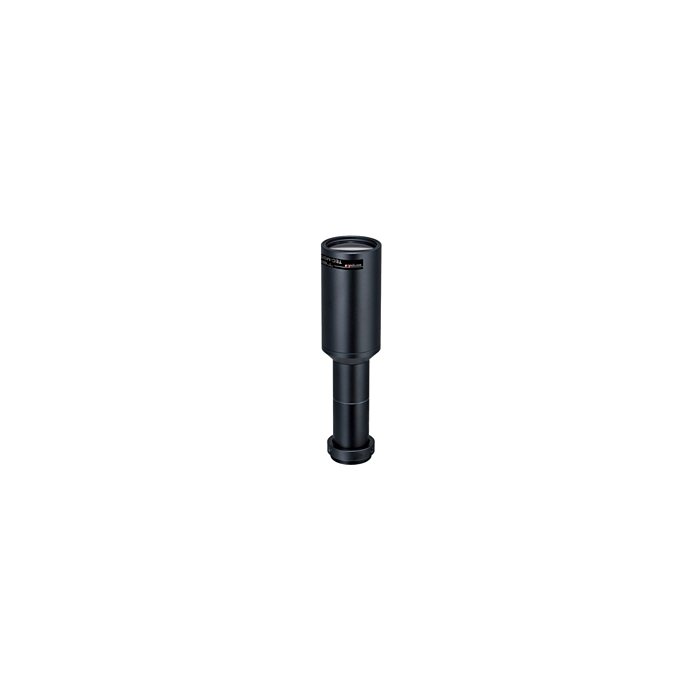

TEC-M05110MP: CBC-Computar M-Series 2MP, 2/3" 111.8mm, Telecentric Lens, 0.5x magnification (C Mount)

Quick Overview

The Computar model TEC-M05110MP provides 0.5X Magnification at 111mm Working Distance for megapixel machine vision cameras.
Overview

Computar Telecentric Lens TEC-M05110MP. Compatible with 2MP sensors on 2/3 ” cameras



Features:



  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 111.8mm working distance
  • 0.5x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  •


    Applications:



  • Industrial Imaging
  • Industrial Inspection
  • Machine Vision
  • Specifications
    Model TEC-M05110MP
    Magnification 0.5x
    Working Distance 111.8mm
    Effective F Number 9.4
    Max. Image Format φ11mm
    Field of View 17.6mm(H) x 13.2mm(V) 2/3"
    Resolving Power *1 12.7µm
    Depth of Field *2 3.03mm
    TV Distortion 2/3" Type -0.009%
    Back Focal Length 17.0mm
    Flange Back Length 17.526mm
    Mount C
    Dimensions φ35mm x 131.2mm
    Weight 128g
    Operating Temp -10℃ - +50℃
