  • CBC-Computar L1028KRW Image #1

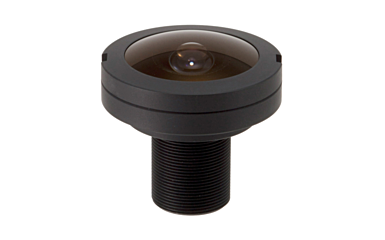

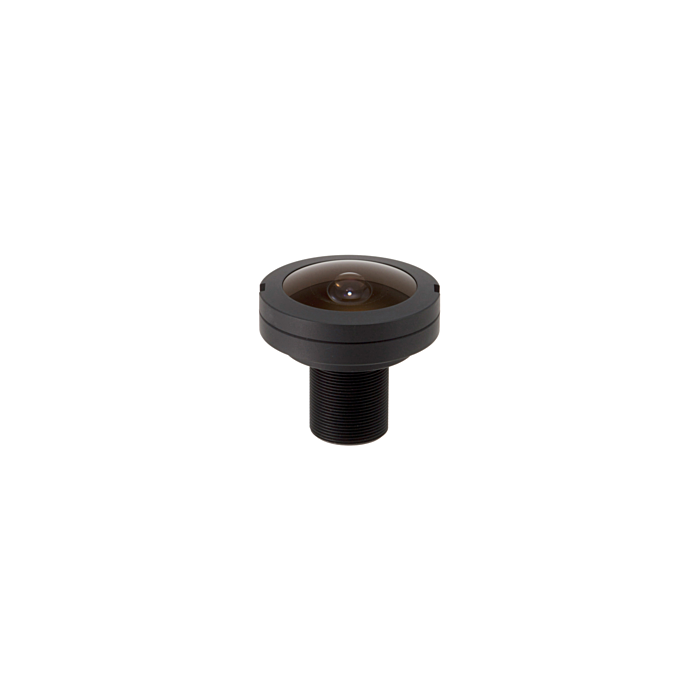

CBC-Computar L1028KRW 1/2.5" 1.05mm 5 Megapixel Fisheye IR Board Lens (S Mount)

Quick Overview

The Computar L1028KRW is a 1/2.5" IR corrected fisheye board lens featuring a 1.05mm fixed focal length, 180 degree Horizontal FOV, and M12 lens mount.
Overview

Computar L1028KRW 1/2.5" 1.05MM F2.8 M12 (S-Mount), 5 MP, IR, Fisheye



Features:



  • 1/2.5" Format
  • 1.05mm Fixed Lens
  • 5MP Fisheye
  • Stereo Graphic Projection
  • 180° HFOV
  • IR Corrected
  • M12 (S Mount)
  • F2.8
  •


    Applications:



  • Machine Vision
  • Industrial Imaging Applications
  • Specifications

    </table

    Model E1222KRY
    Focal Length 1.2mm
    Max. Aperture Ratio 1:2.2
    Image Size at 185° φ5.38mm
    Mount M12 P=0.5mmf.
    Control Iris Manual Focus Manual
    Effective Lens Aperture Front φ 24.4mm   Rear φ 5.6mm
    Back Focal Length 4.2mm
    Dimensions φ29.2mm x 25.7mm
    Weight TBD
    Operating Temperature -10℃ ‐ +50℃
