  • CBC-Computar L1028KDRW  Image #1

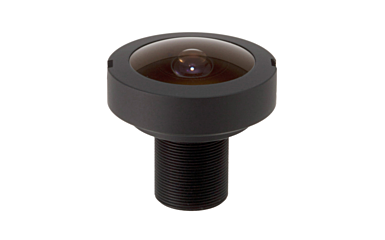

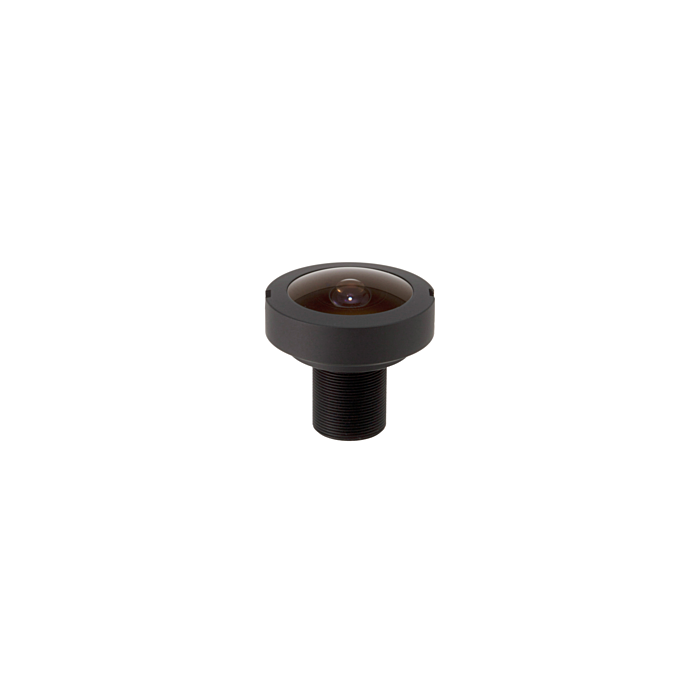

CBC-Computar L1028KDRW 1/2.5" 1.05mm 5 Megapixel Fisheye IR Board Lens (S-Mount)

Quick Overview

The Computar L1028KDRW is a 1/2.5" IR corrected fisheye board lens featuring a 1.05mm fixed focal length, 180 degree Horizontal FOV, and M12 lens mount.
Overview

Computar L1028KDRW 1/2.5" 1.05MM F2.8 M12 (S-Mount), 5 Megapixel Rated, IR, Fisheye, IP66 Waterproof



Features:



  • 1/2.5" Format
  • 1.05mm Fixed Lens
  • 5MP Fisheye
  • Stereo Graphic Projection
  • 180° HFOV
  • IR Corrected
  • M12 (S Mount)
  • F2.8
  • IP66 Waterproof (Option)
  •


    Applications:



  • Machine Vision
  • Industrial Applications
  • Specifications

    </table

    Model L1028KDRW
    Focal Length 1.05mm
    Max. Aperture Ratio 1:2.8
    Image Size at 180° φ4.1
    Mount M12 P=0.5mmf.
    Effective Lens Aperture Front φ 20mm   Rear φ 5.4mm
    Back Focal Length 3.62mm
    Dimensions φ27mm x 26.02mm
    Weight 17.3g
